PGB80/HDMI/ACUSB - 80mm Power & USB Desk Grommet in Black + HDMI Media Slot

Tass FloorboxSKU: PGB80/HDMI/ACUSB - 2m
filler

Price:
£140(Ex. Vat)

Description

Description

Specifications

Downloads

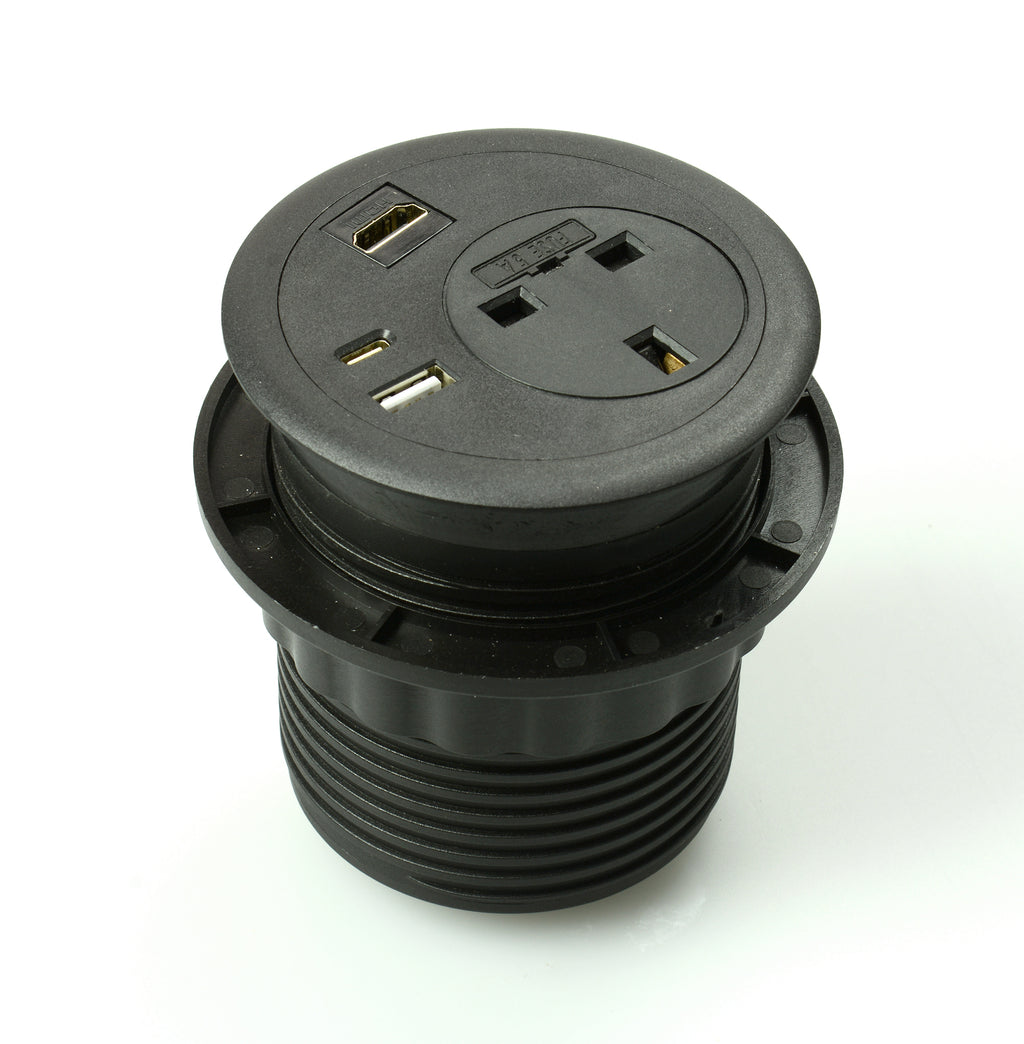

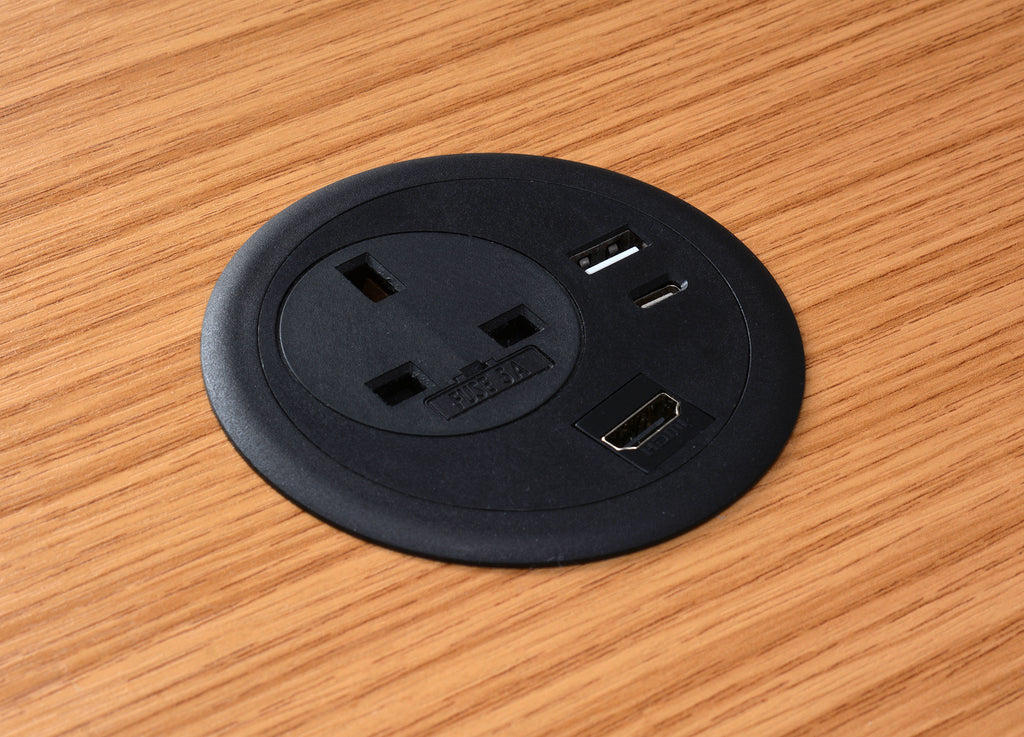

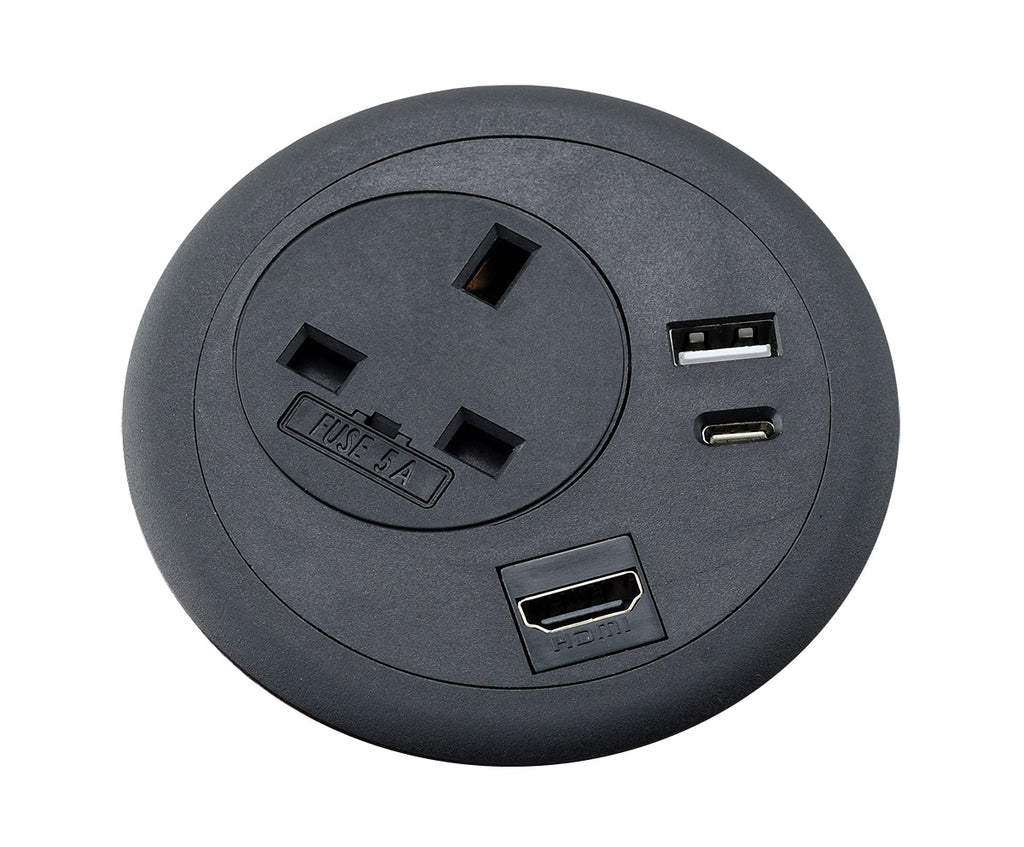

  • 80mm desk grommet finished in black
  • Standard 80mm Cut out
  • Type A and C USB smart chargers as standard
  • HDMI module in media slot (interchangeable)
  • 1 x UK power socket fused at 5A
  • 360 degree socket rotation

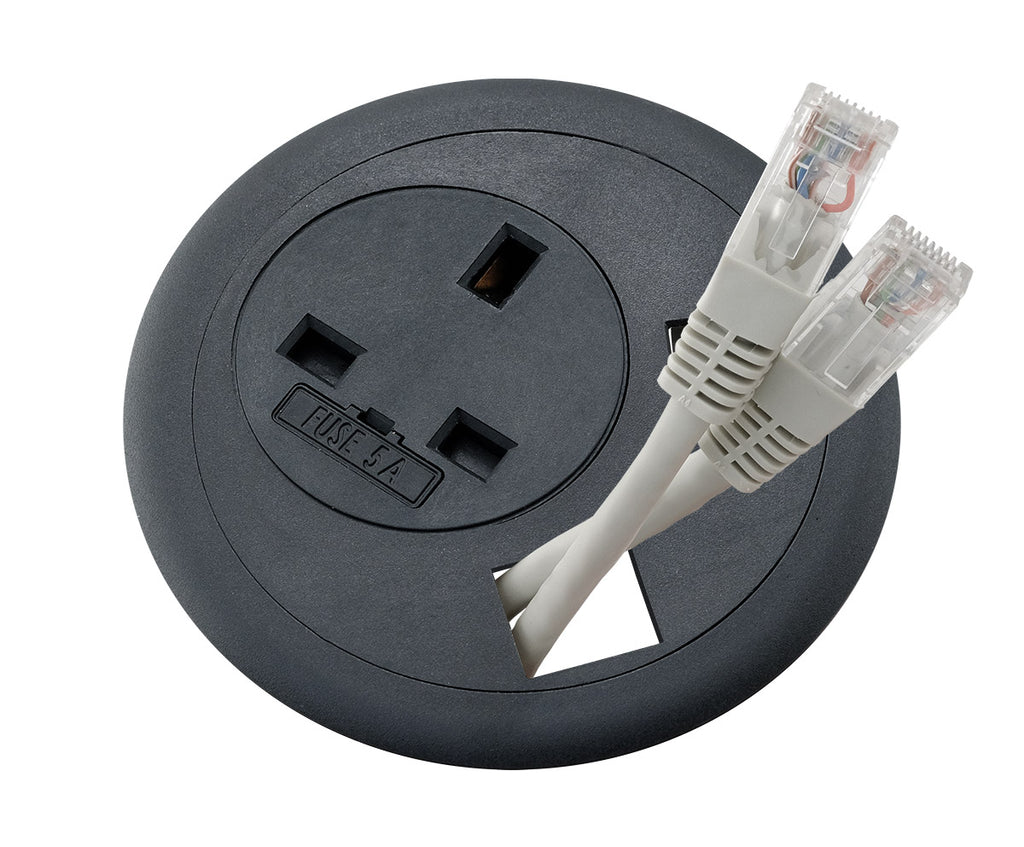

  • Media slot can double as a cable pass through to desktop
  • Securely held in place with a screw on Locking ring
  • Overall unit depth is 80mm
  • Male 3 pin power connector

Powered by a 3 pin power connector, the Power Grommet is compatible with Power start leads (please select your required length when ordering), for Power start leads longer than 5m please click here.

Please note:

  • Select your required Power start lead length when ordering.
  • Power grommet not suitable for screed and concrete floors.
Model: PGB80/HDMI/ACUSB
Colours: Black
Cutout Dia: 80mm
USB Ports:
Type A & C USB Smart Charger
Media Slot: HDMI Module
Construction: PVC Extrusion, PVC Socket & Fascias
Fuse Rating: 5A
Fuse Size/Type: 20mm Ceramic Fuse
Above Desk: 2.9mm / Diameter: 93.2
Min/Max desk Clearance: 10mm - 70mm
Above Desk Clearance: 2mm
Below Desk Clearance: 80mm
Usable Desk Depths: 20mm - 70mm
Mains Connector: 3 Pin Power Connector
Conformity: BS 5733
USB Type A Charger: QC 3.0, 2V/5A, 5V/3A, 9V/2A
USB Type C Charger: PD, 2V/5A, 5V/3A, 9V/2A
Compliance: BS6396:2008 / UL94VO rated / PA66
