TFB3/120 Cavity Floorbox

Tass FloorboxSKU: TFB3/120

Price:
£45(Ex. Vat)

Description

Description

Dimensions

Downloads

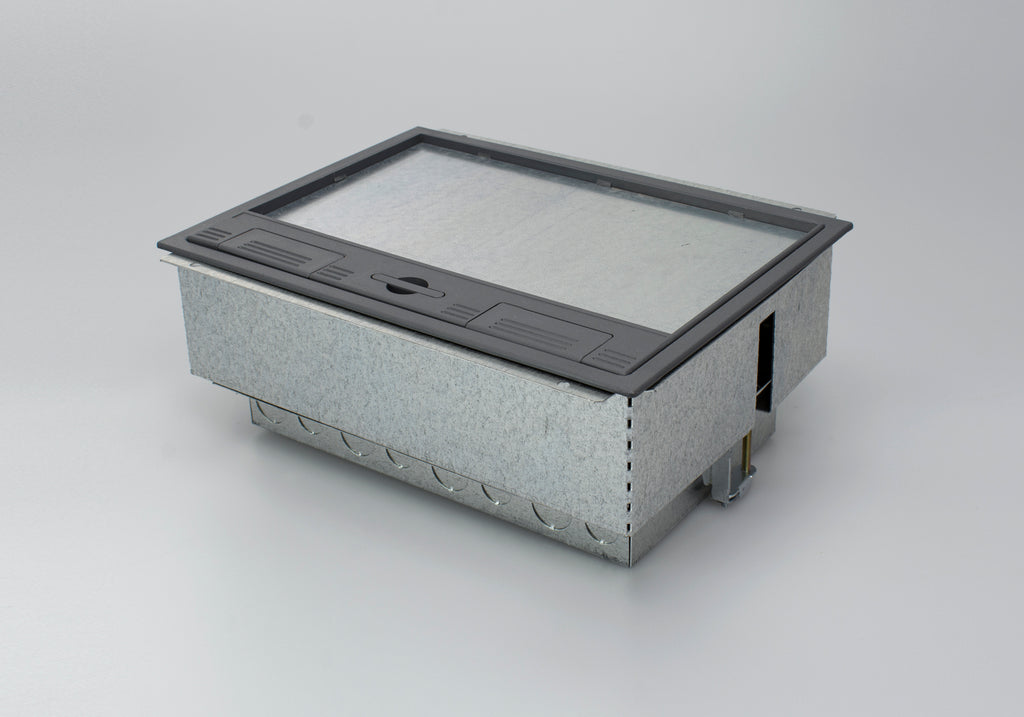

  • Floor box manufactured from galvanised steel
  • Standard depth 120mm designed to accepts standard accessory plates from electrical wholesalers
  • Designed to accommodate larger power supplies and phone chargers
  • 20mm & 25mm knockouts to accept flexible conduit
  • Frame & lid moulded from high impact polycarbonate (RAL7031)
  • Galvanised lid insert for strength
  • Easy grip recessed lifting handle
  • Compact design 303mm x 221mm floor cut-out
  • Clamp fixing for fast installation
  • Large range of accessory plate, colour equivalent: RAL7035

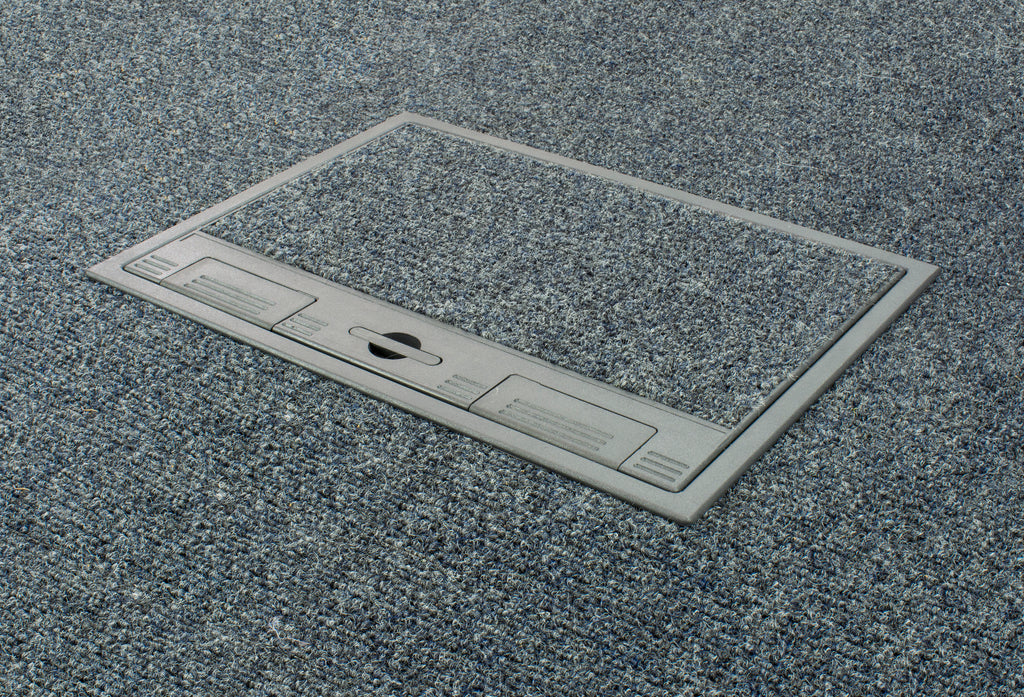

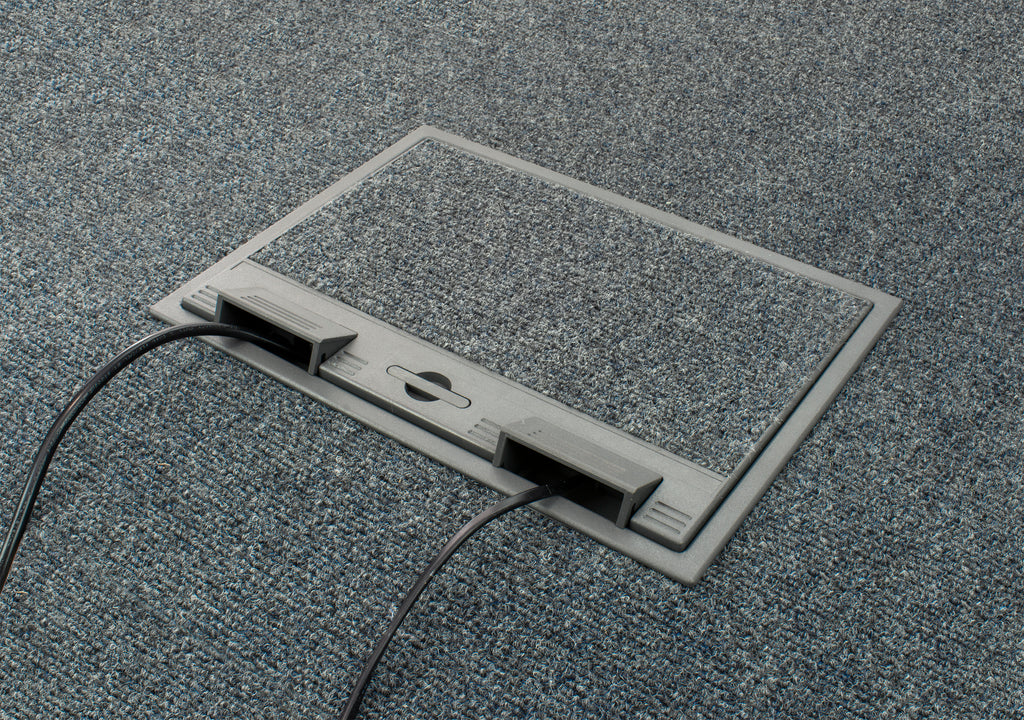

  • Suitable for carpeted floors only with standard Frame & Lid
  • Clean Earth Sockets available
  • IP Rating: IP20
  • ABS Frame & Lid fire rating UL94 HB Halogen Free
  • Cat6 compatible floor box require wave data plates or angled modules, using Cat6 non booted patch leads will minimise The bend radius of the data cable.
  • Fire rating Euro Class E-F Class 4 None Tested
  • ABS Plastic Frame & Lid Load Test 550 KG
  • Steel Frame & Lid Load Test 740 KG
Model: TFB3/120
Floor Cut Out: 303mm x 221mm
Floor Box Depth: 120mm
Plug Top Clearance: 70mm
Overall Frame & Lid: 313mm x 230mm
Frame Lid Recess: 6mm
Accessory Plate: 185mm x 89mm

Accessory Plate Options

Frame & Lids Options
