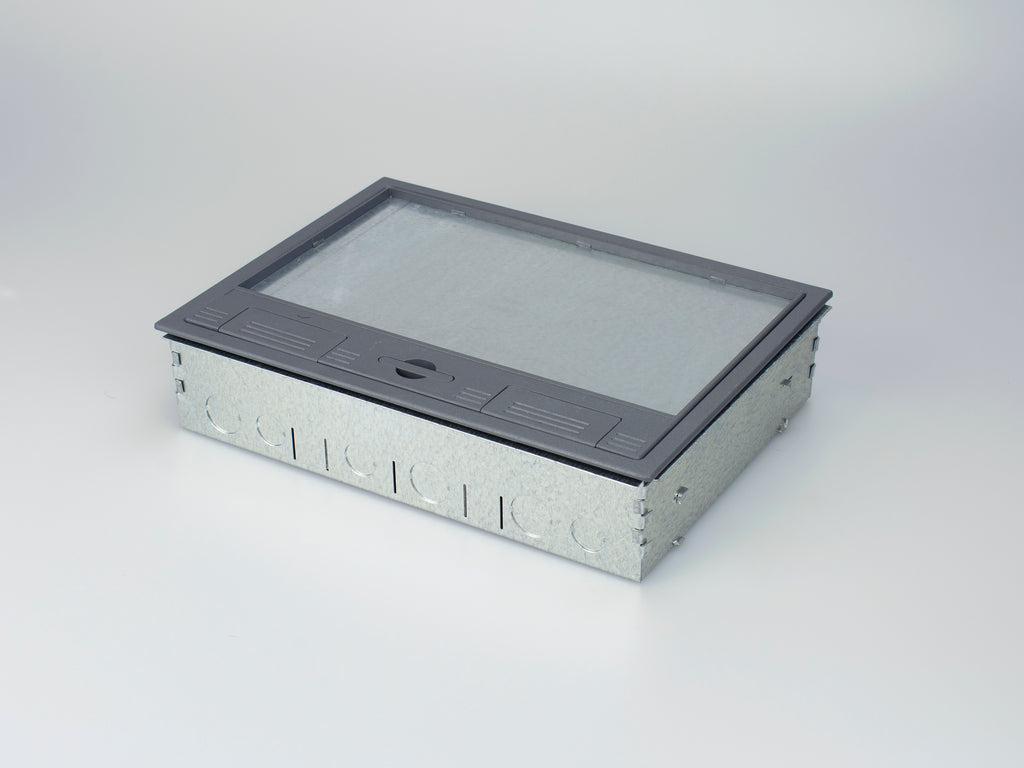

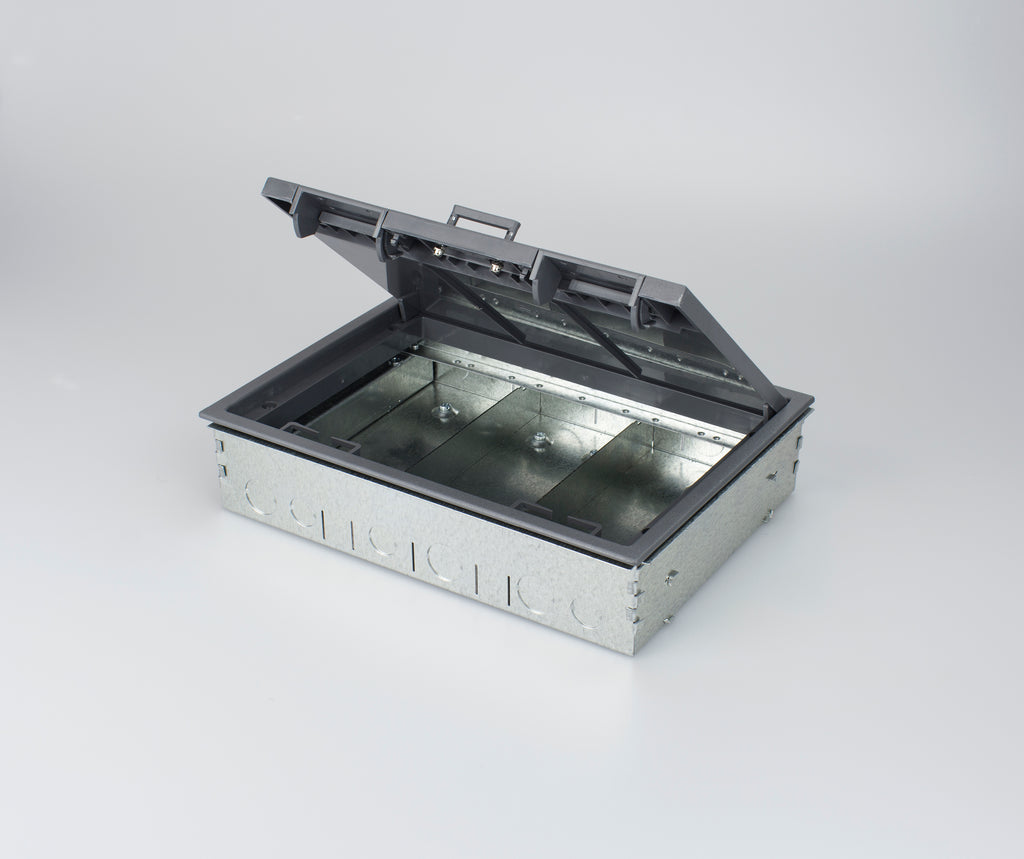

TSB4/65 Screed Box UK Manufactured

Tass FloorboxSKU: TSB4/65
filler

Price:
£50(Ex. Vat)

Description

Description

Dimensions

Downloads

  • Floor box manufactured from galvanised steel
  • 25 & 20mm knockouts to accept flexible conduit
  • Frame & lid moulded from high impact polycarbonate, colour equivalent: RAL7031
  • Galvanised lid insert for strength
  • Easy grip recessed lifting handle
  • Compact design 303 x 221mm floor cut-out
  • Designed to accept 4 accessory plates
  • Large range of accessory plates, colour equivalent: RAL7035
  • Special plates available to order
  • Clean Earth Sockets available
  • IP Rating: IP20
  • ABS Frame & Lid fire rating UL94 HB Halogen Free
  • Fire rating Euro Class E-F Class 4 None Tested
  • ABS Plastic Frame & Lid Load Test 550 KG
  • Steel Frame & Lid Load Test 740 KG

Note: the TSB4/65mm screed box has restrictive cabling capacity we recommend the use of Side wired Sockets (ST0290/RH/SW & ST0290/LH/SW).

Model: TSB4/65
Floor Cut Out: 303mm x 221mm
Floor Box Depth: 65mm
Plug Top Clearance: 21mm
Overall Frame & Lid: 313mm x 230mm
Frame Lid Recess: 6mm
Accessory Plate: 185mm x 68mm

TSB4/65 Accessory Plate Options
