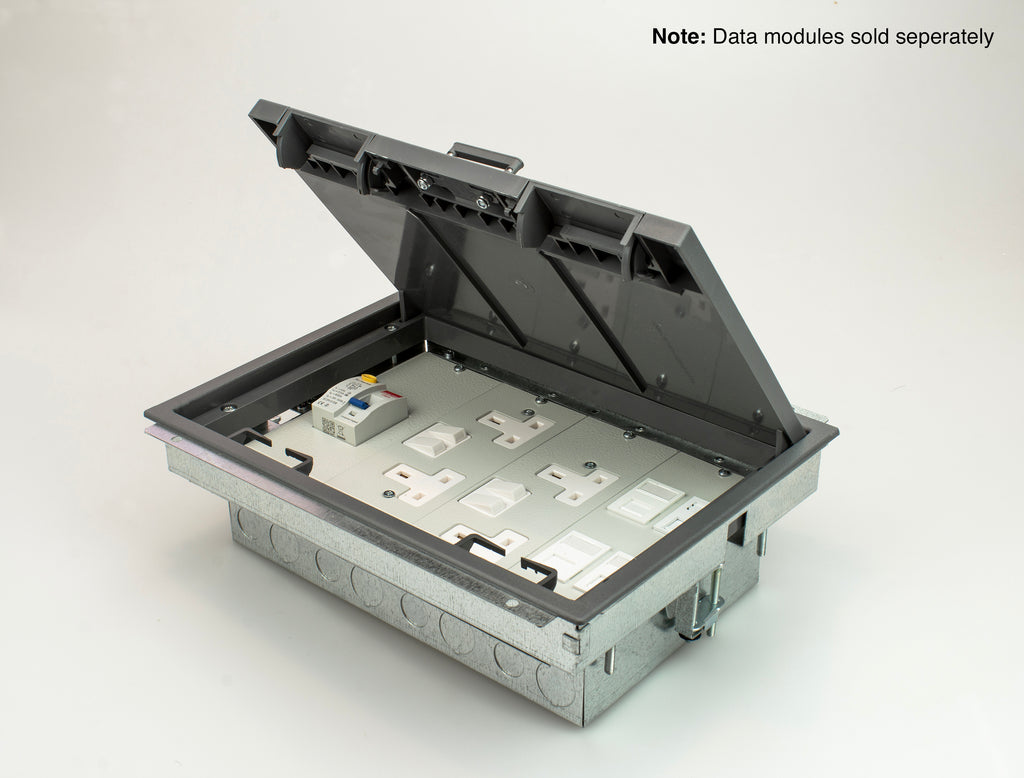

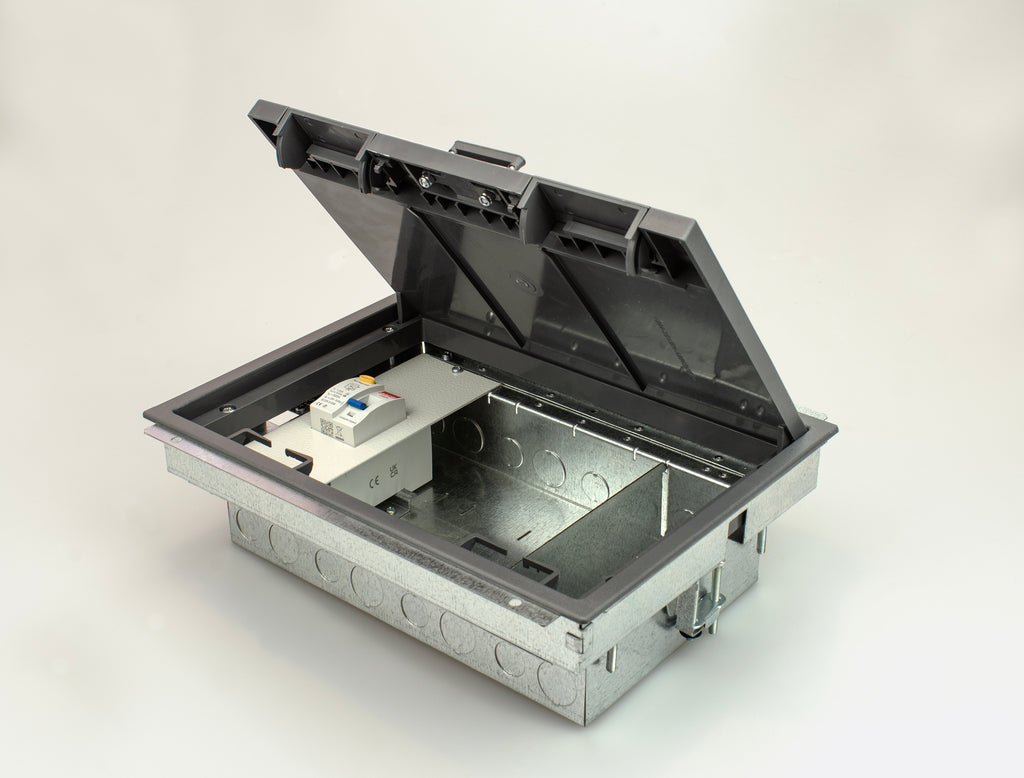

- Floor box manufactured from galvanised steel
- 20mm & 25mm knockouts to accept flexible conduit
- Frame & lid moulded from high impact polycarbonate (RAL7031)
-
Builtin RCD Module
- Rated Current 63A / Double Pole
- Fault Current protection 30mA
- Terminal Capacity 25mm
- Standards: BS EN 61008
- Galvanised lid insert for strength
- Easy grip recessed lifting handle
- Compact design 303mm x 221mm floor cut-out
- Clamp fixing for fast installation
- Suitable for carpeted floors only with standard Frame & Lid
- Clean Earth Sockets available
- IP Rating: IP20
- ABS Frame & Lid fire rating UL94 HB Halogen Free
- Fire rating Euro Class E-F Class 4 None Tested
- ABS Plastic Frame & Lid Load Test 550 KG
- Steel Frame & Lid Load Test 740 KG
| Model: | TFB4/RCD |
|---|---|
| Floor Cut Out: | 303mm x 221mm |
| Floor Box Depth: | 90mm |
| Plug Top Clearance: | 28mm |
| Overall Frame & Lid: | 313mm x 230mm |
| Frame Lid Recess: | 6mm |
| Accessory Plate: | 185mm x 68mm |
| RCD Module Specifications: | |
|---|---|
| Rated Current: | 63A |
| Poles: | Double |
| Fault Current Protection: | 30mA |
| Terminal Capacity: | 25mm |
| Standards: | BS EN 61008 |
TFB4 Accessory Plate Options
 ST02792 x Euro Module Plate |
 ST02806 Way Data Plate |
 ST0282Blank Plate |
 ST02854 Way Data Plate |
 ST0285/W4 Way Data Wave Plate |
 ST0290/RHRight-Hand Twin Switched Sockets |
 ST0290/LHLeft-Hand Twin Switched Sockets |
Frame & Lids Options for TFB3/64, TFB4/64 & TFB4/RCD
 ABSL6R281Replacement ABS Frame & Lid |
 ABSL6R281-LLLockable ABS Frame & Lid |
