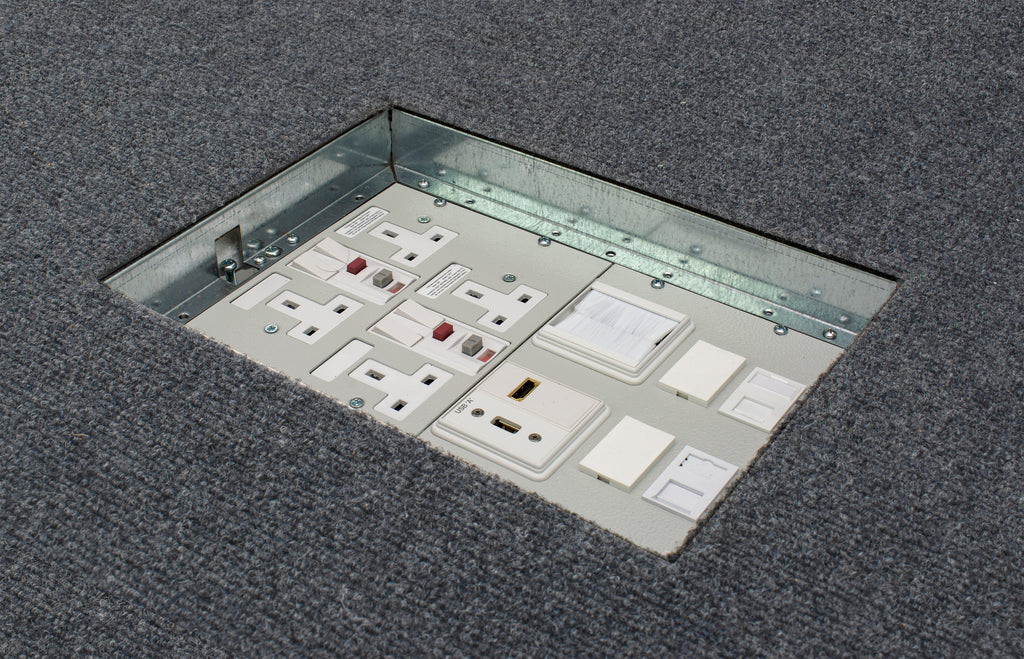

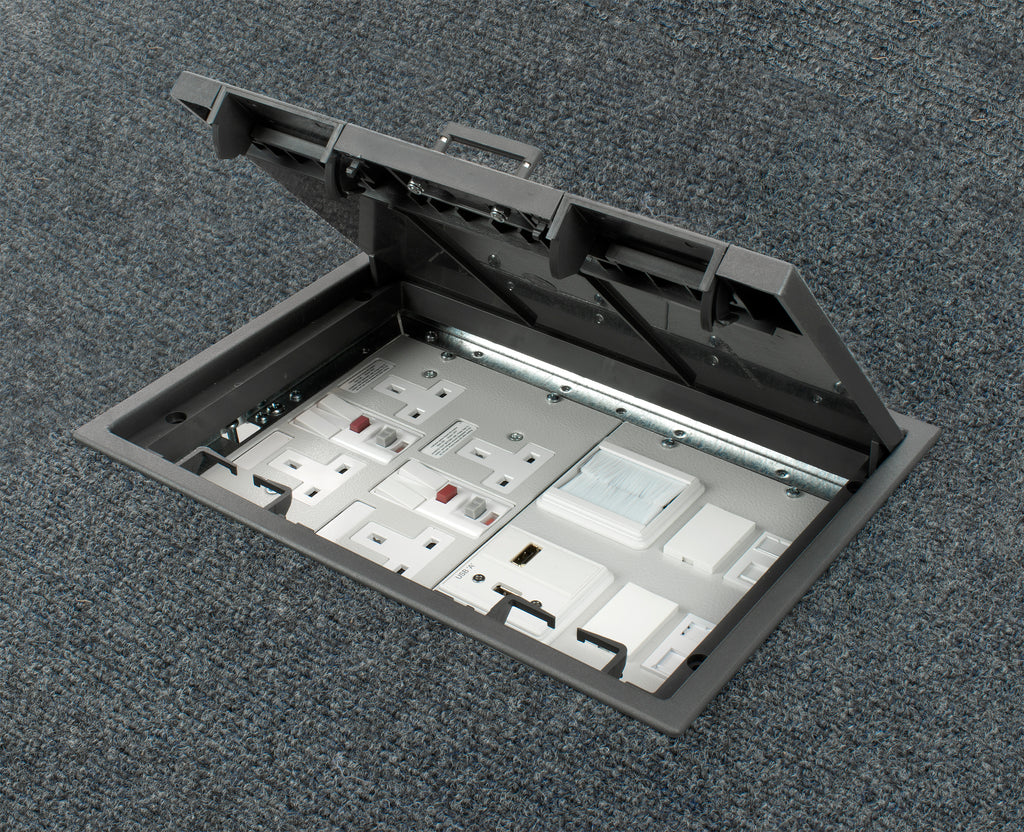

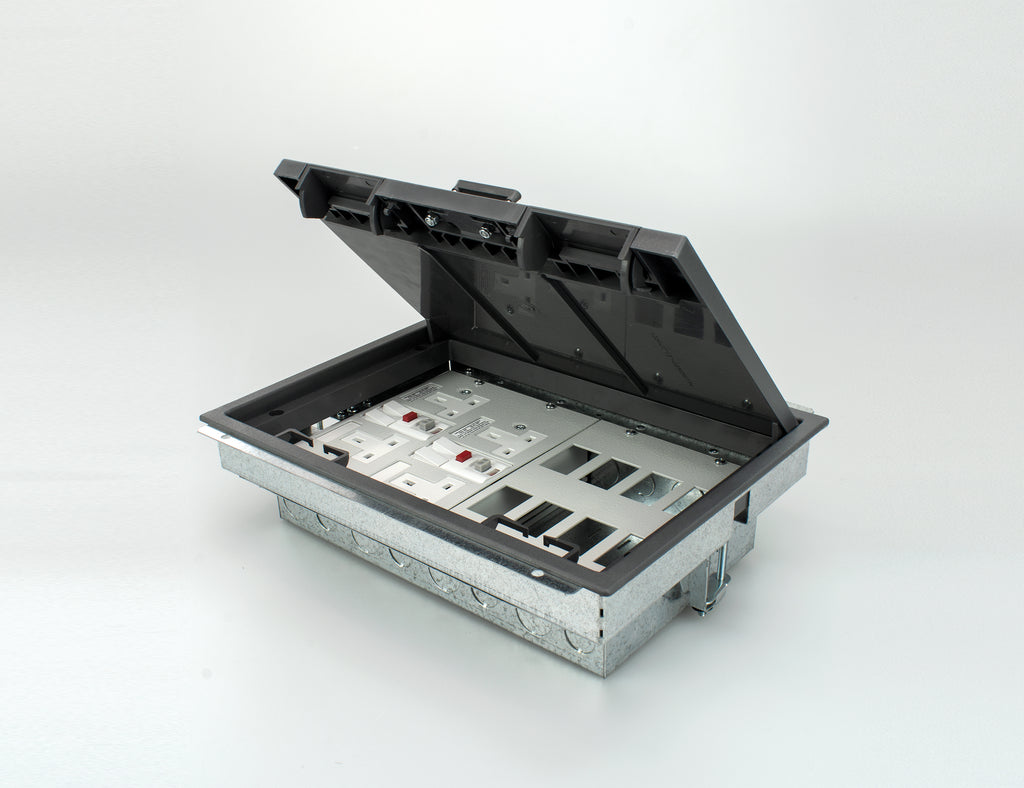

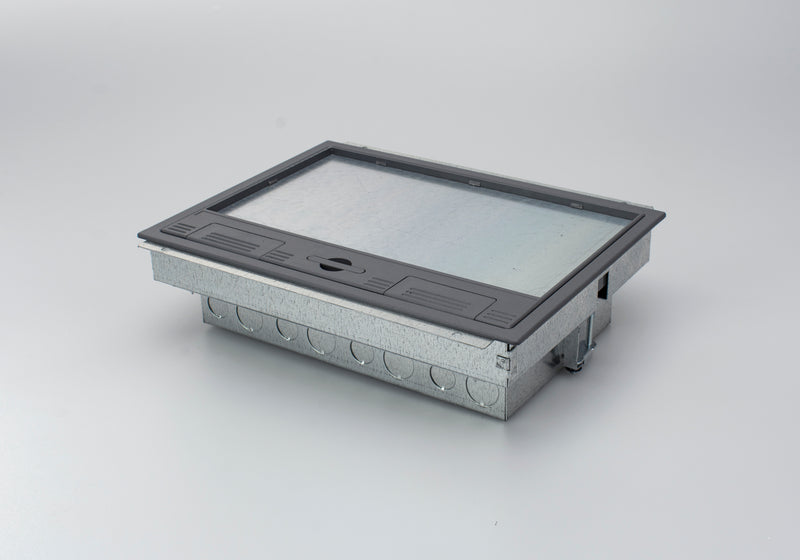

TFB4/80-RCD2 Cavity Floorbox (Dual RCD Sockets)

Tass FloorboxSKU: TFB4/80-RCD2 (LJ6C)
filler

Price:
£170(Ex. Vat)

Description

Description

Variants

Dimensions

Downloads

• Floor box manufactured from galvanised steel
Fitted with dual twin switched RCD socket plate as standard
Available with LJ6C or EURO module plate combinations, see variants tab
• 20mm & 25mm knockouts to accept flexible conduit
• Frame & lid moulded from high impact polycarbonate (RAL7031)
• Galvanised lid insert for strength
• Easy grip recessed lifting handle
• Compact design 303mm x 221mm floor cut-out
• Clamp fixing for fast installation
• IP Rating: IP20
• ABS Frame & Lid fire rating UL94 HB Halogen Free
• Fire rating Euro Class E-F Class 4 None Tested

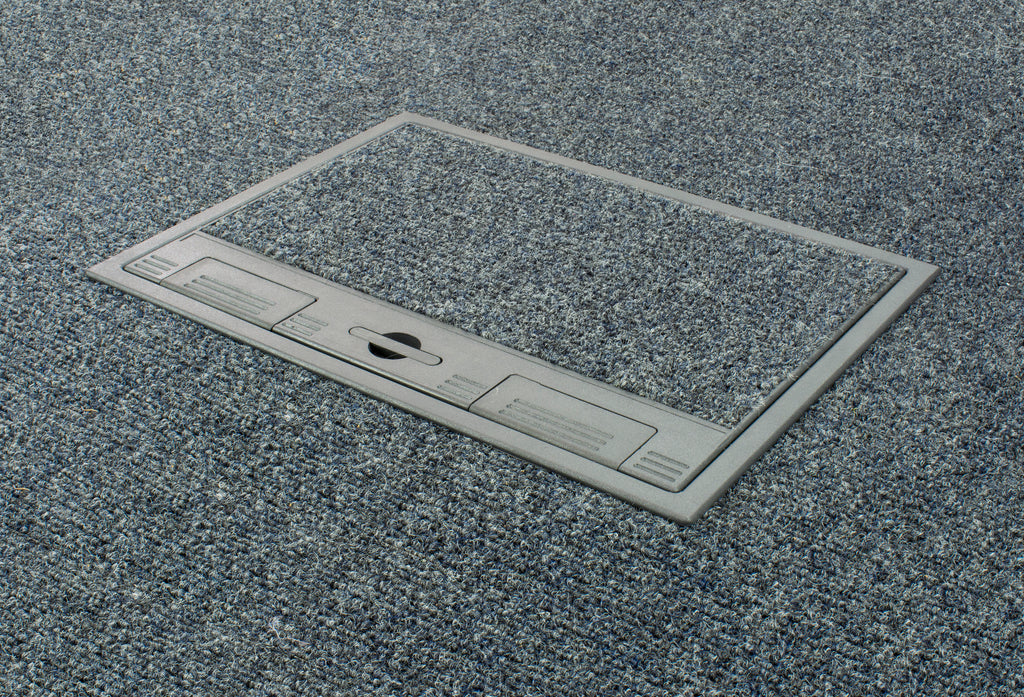

• Suitable for carpeted floors only with standard Frame & Lid
• ABS Plastic Frame & Lid Load Test 550 KG
• Steel Frame & Lid Load Test 740 KG

The TFB4/80-RCD2 Cavity Floorbox is available in 3 variations:

TFB4/80-RCD2 (LJ6C) Fitted with 2 x 4 Way LJ6C Data Plate

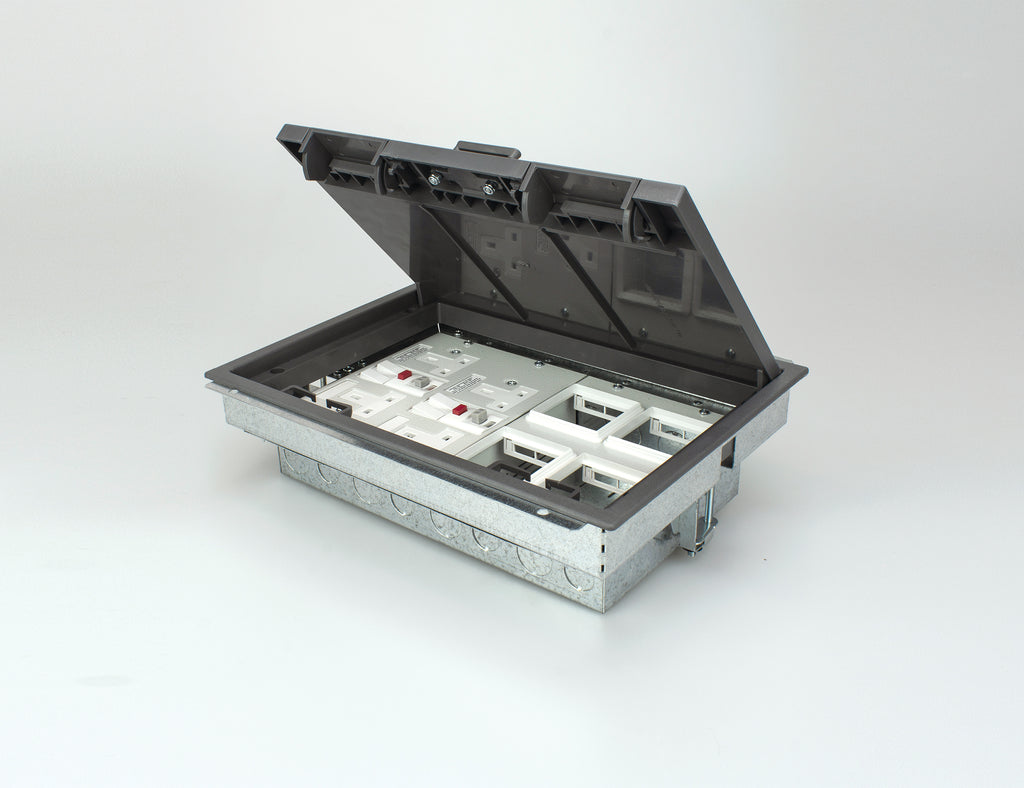

TFB4/80-RCD2 (EURO) Fitted with 2 x Twin EURO Module Plate (50x50mm)

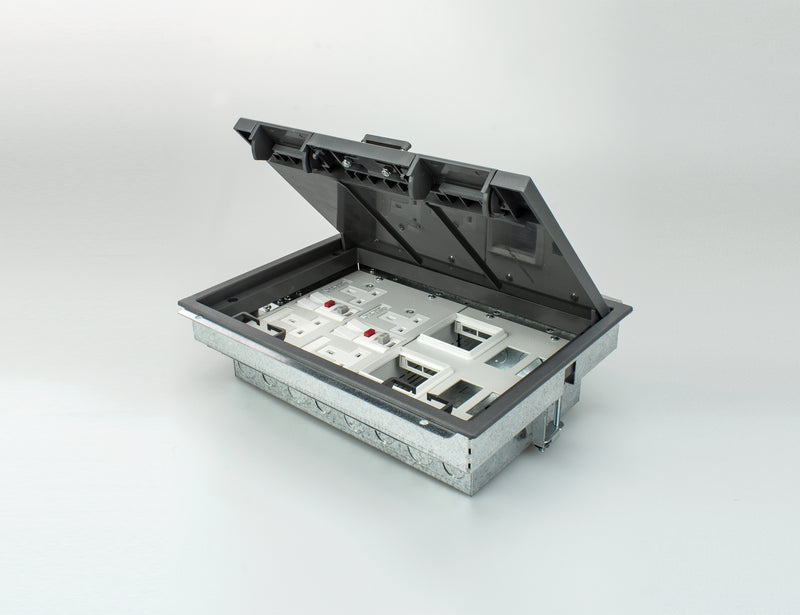

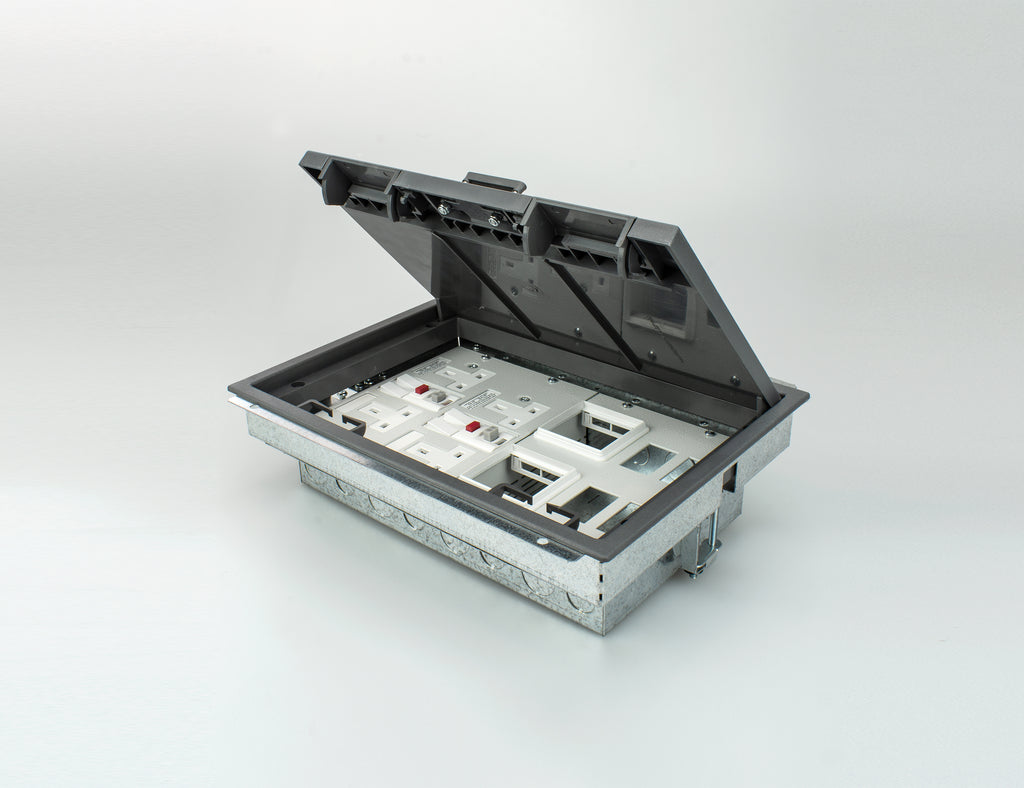

TFB4/80-RCD2 (COMINED) Twin EURO Module & 4 way LJ6C Data Plate
Model: TFB4/80-RCD
Floor Cut Out: 303mm x 221mm
Floor Box Depth: 80mm
Plug Top Clearance: 30mm
Overall Frame & Lid: 313mm x 230mm
Frame Lid Recess: 6mm
Accessory Plate: Custom

4 Compt Dual RCD floorbox Accessory Plate Options (RCD2)

Frame & Lid Options (76mm - 80mm Depth Boxes)
