152mm Standard RCD Power Grommet with 1 Data Space

Tass FloorboxSKU: FGG152RCD-D
filler

Price:
£102.50(Ex. Vat)

Description

Description

Specifications

Downloads

  • Adjustable aperture opening
  • Secure Screw clamp installation
  • Manufactured from High Grade engineering plastics/ABS
  • Halogen Free flame retardant material UL94 VO with guaranteed low toxicity
  • New tapered edge flange for improved functionality
  • Cable opening dimensions: 76mm x 24mm
  • Galvanised steel back box
  • 20mm knockouts

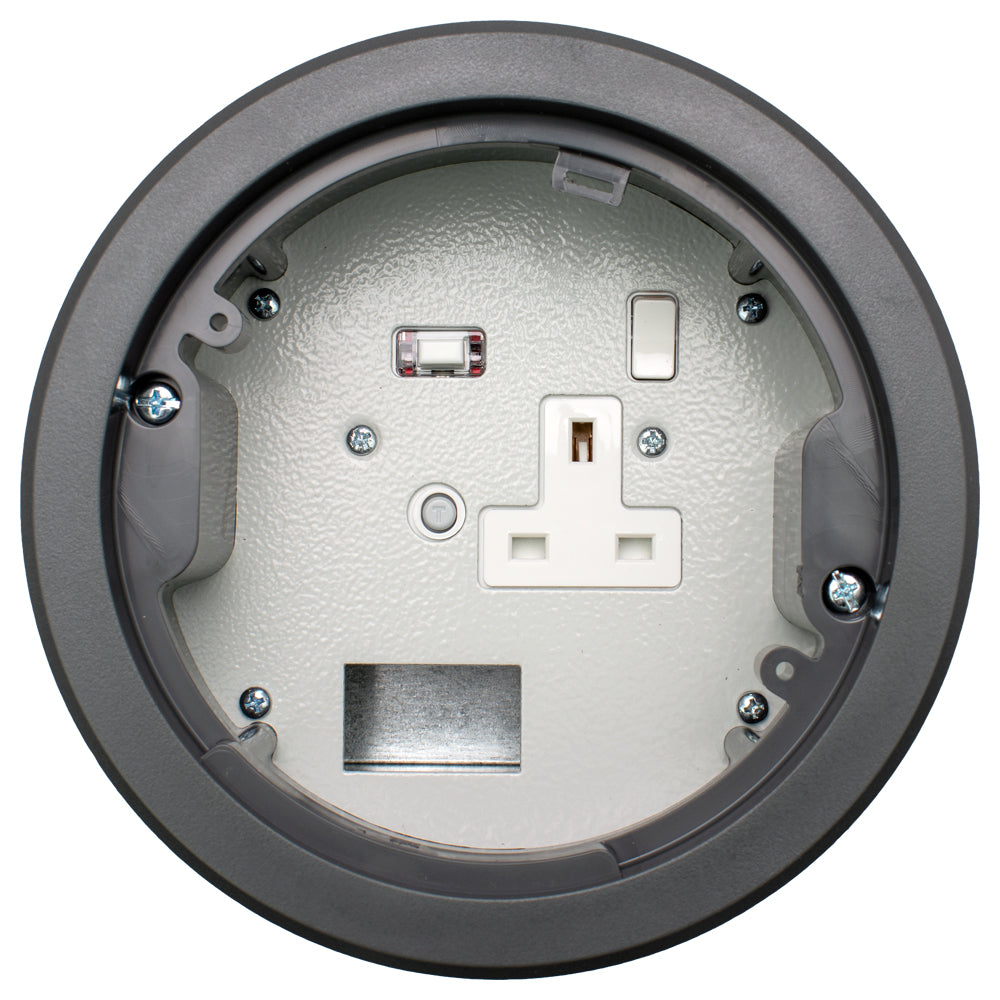

  • 13A UK RCD Protected Socket
  • 1 x LJ6C data space (37x22mm) modules sold separately, click here for options
  • Max plug top width 48mm

Please note:

Not recommended in walkways or in areas which may cause a trip hazardStandard Power Grommets are not suitable for screed and concrete floors
Model: FGG152RCD-D

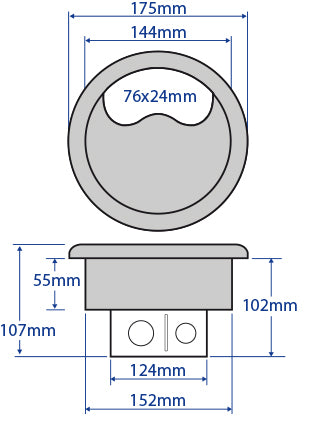

Cutout Dia: 152mm
Overall Dia: 175mm
Power: 1 x 13A UK RCD Socket
Data: 1 x LJ6C Data Space
Colours: Grey
Flange Thickness: 5.46mm
Cable Entry: 76mm x 24mm
Min. Required Depth: 102mm
