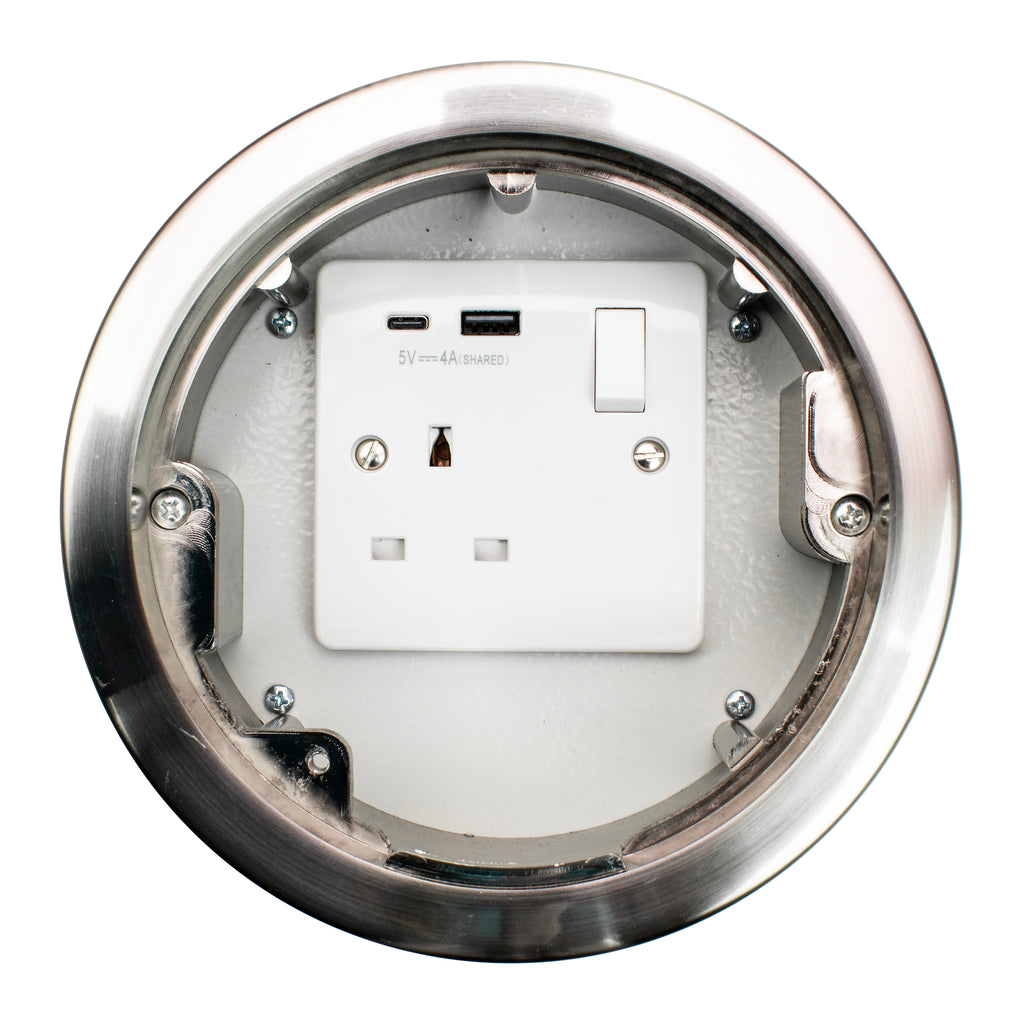

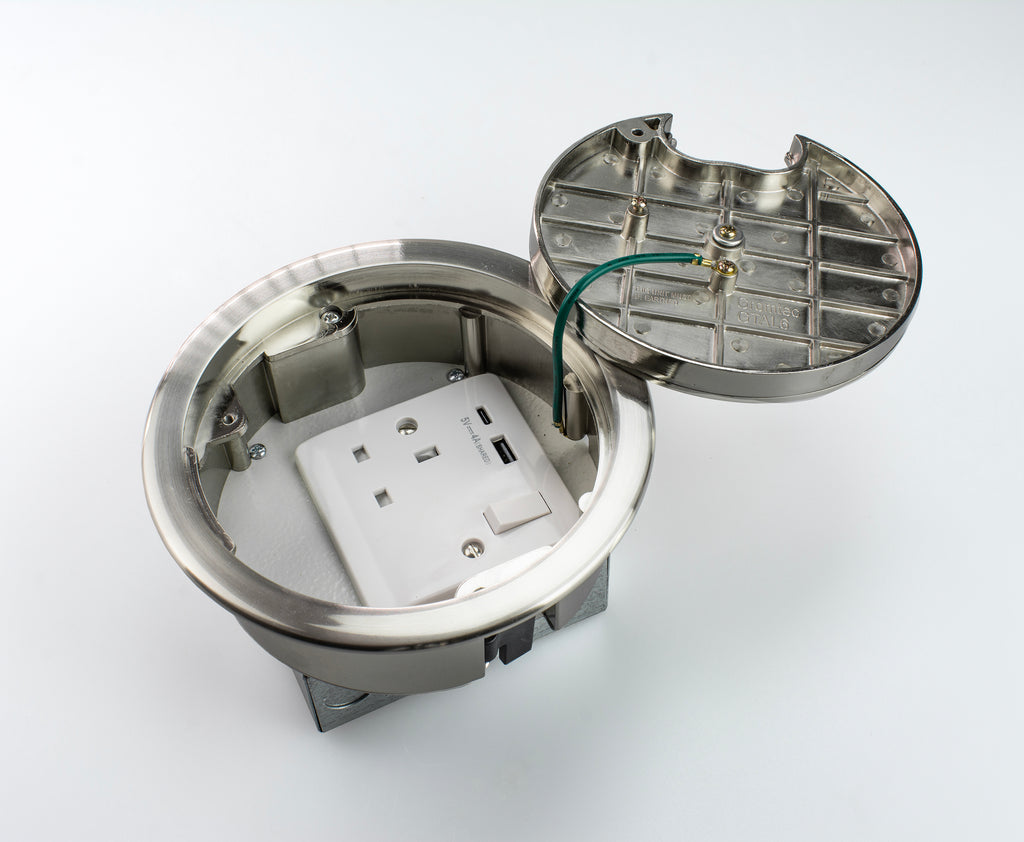

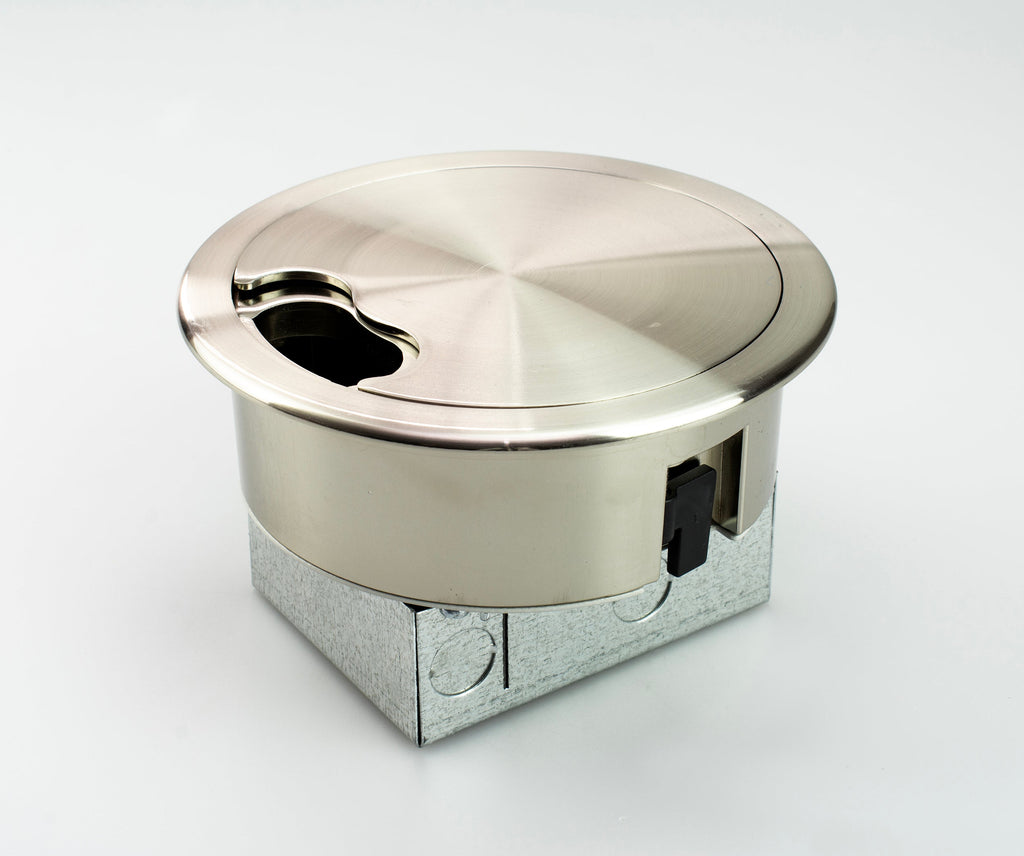

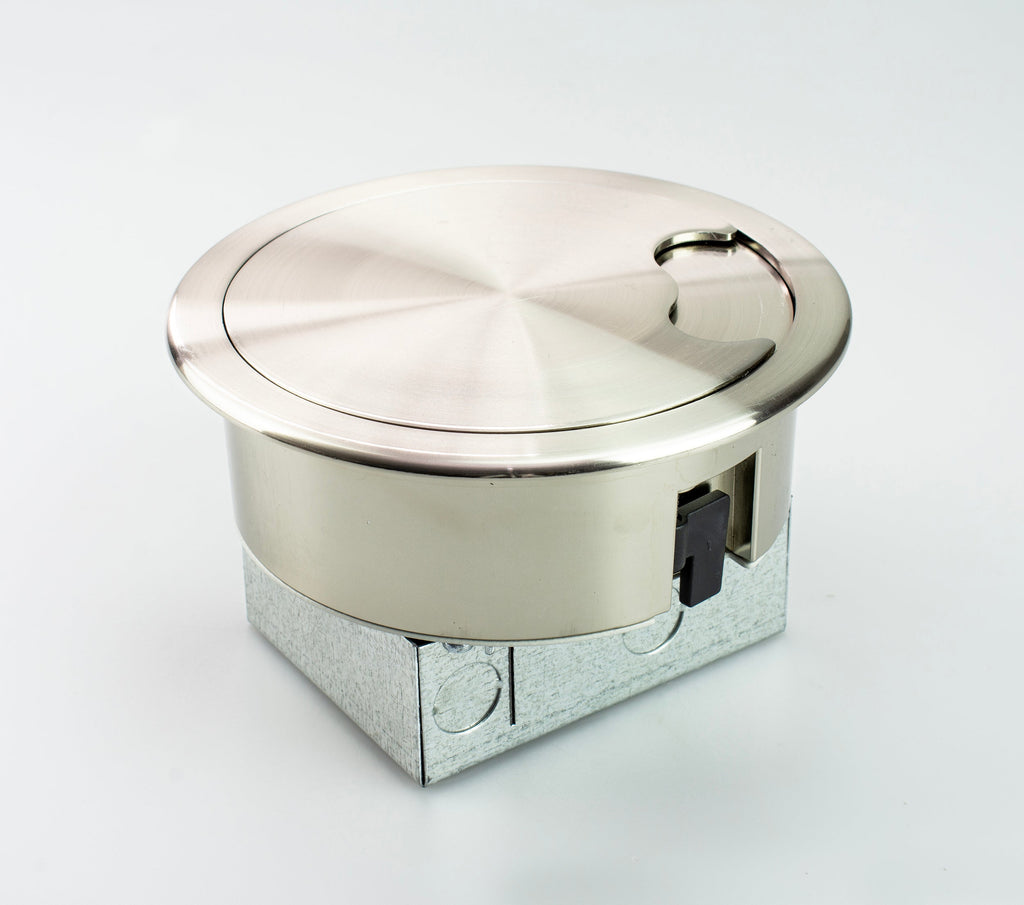

- Aluminium body with adjustable fixing clamps
- Secure Screw clamp installation
- Manufactured from aluminium with tapered edge and milled finish
- 13A UK socket
- 2 x USB ports (Types A & C), 5V~4A (shared)
- Galvanised steel back box
- Cable entry size: 50x24mm
- Stainless steel unit must be earthed
- 20mm knockouts
- Max plug top width 48mm
Please note:
| Model: | FGA152PUSB |
|---|---|
| Cutout Dia: | 152mm |
| Overall Dia: | 175mm |
| Power: | 1 x 13A UK Socket |
| USB: | Type A & Type C |
| Voltage: | 5V~4A (shared) |
| Colours: | Stainless Steel / Chrome |
| Flange Overhang: | 12mm |
| Cable Entry: | 50mm x 24mm |
| Min. Required Depth: | 102mm |
