169mm Stainless Steel Power Grommet with 2 Data Spaces

Tass FloorboxSKU: FGS169PDD

£105(Ex. Vat)





  • Stainless steel Frame and lid section with lid retaining screws
  • Adjustable aperture opening
  • Secure Screw clamp installation
  • Galvanised steel backbox (97mm x 135mm)
  • 20mm and 25mm knockouts

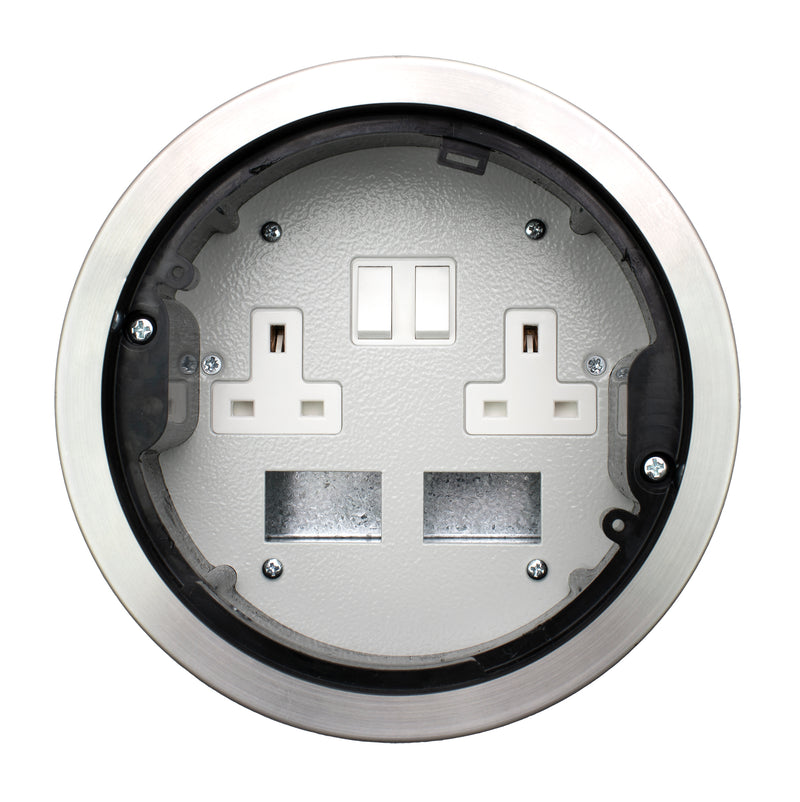

  • 13A Twin switched UK Socket
  • 2 x LJ6C data space (37x22mm) modules sold separately, click here for options
  • Max plug top width 48mm

Please note:

  • Not recommended in walkways or in areas which may cause a trip hazard
  • Standard Power Grommets are not suitable for screed and concrete floors

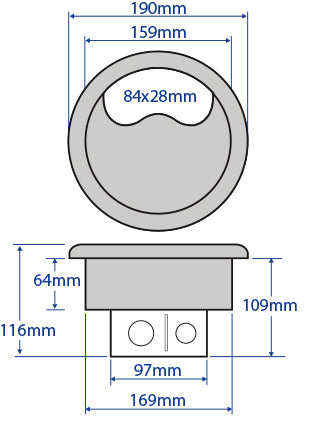

  • Model: FGS169PDD
    Cutout Dia: 169mm
    Overall Dia: 190mm
    Power: 13A Twin Switched UK Socket
    Data: 2 x LJ6C Data Spaces
    Colours: Stainless Steel
    Flange Thickness: 9mm
    Flange Overhang: 11mm
    Cable Entry: 84mm x 28mm
    Min. Required Depth: 109mm
