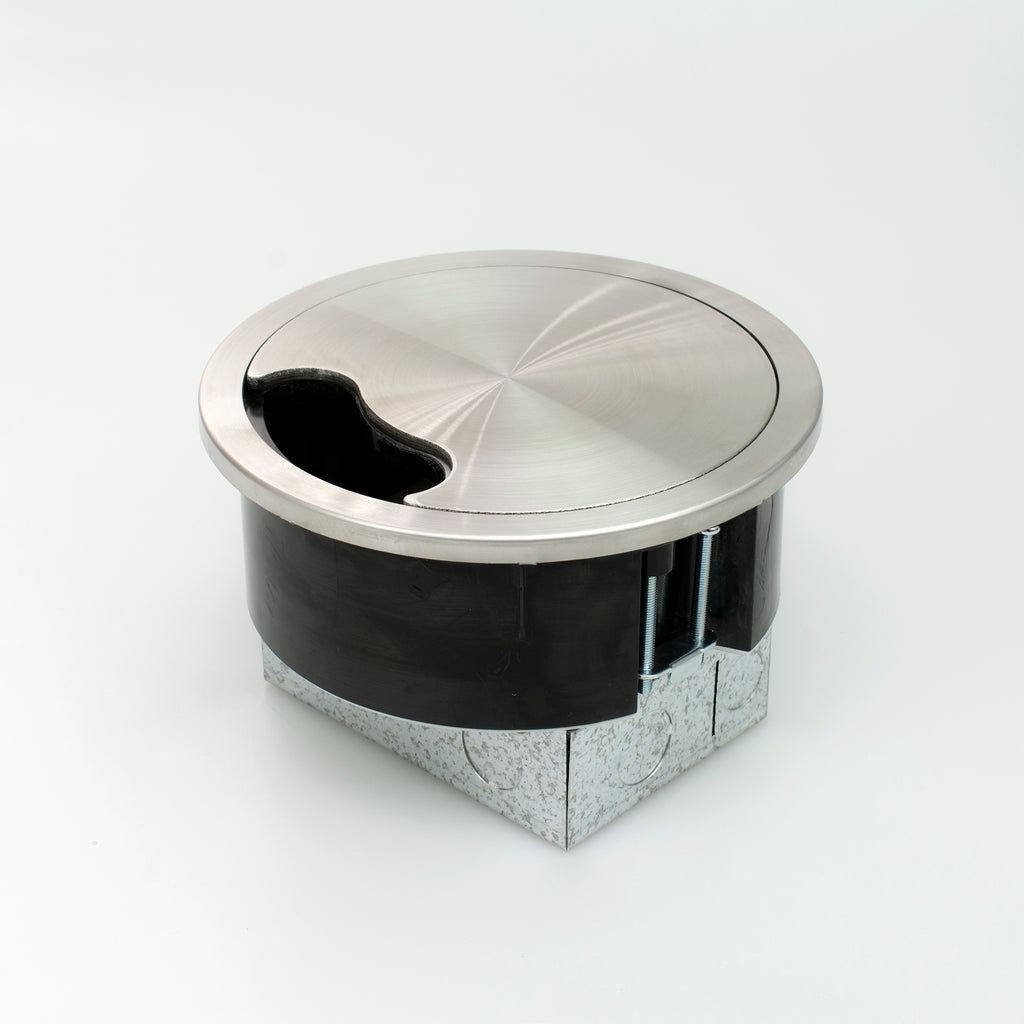

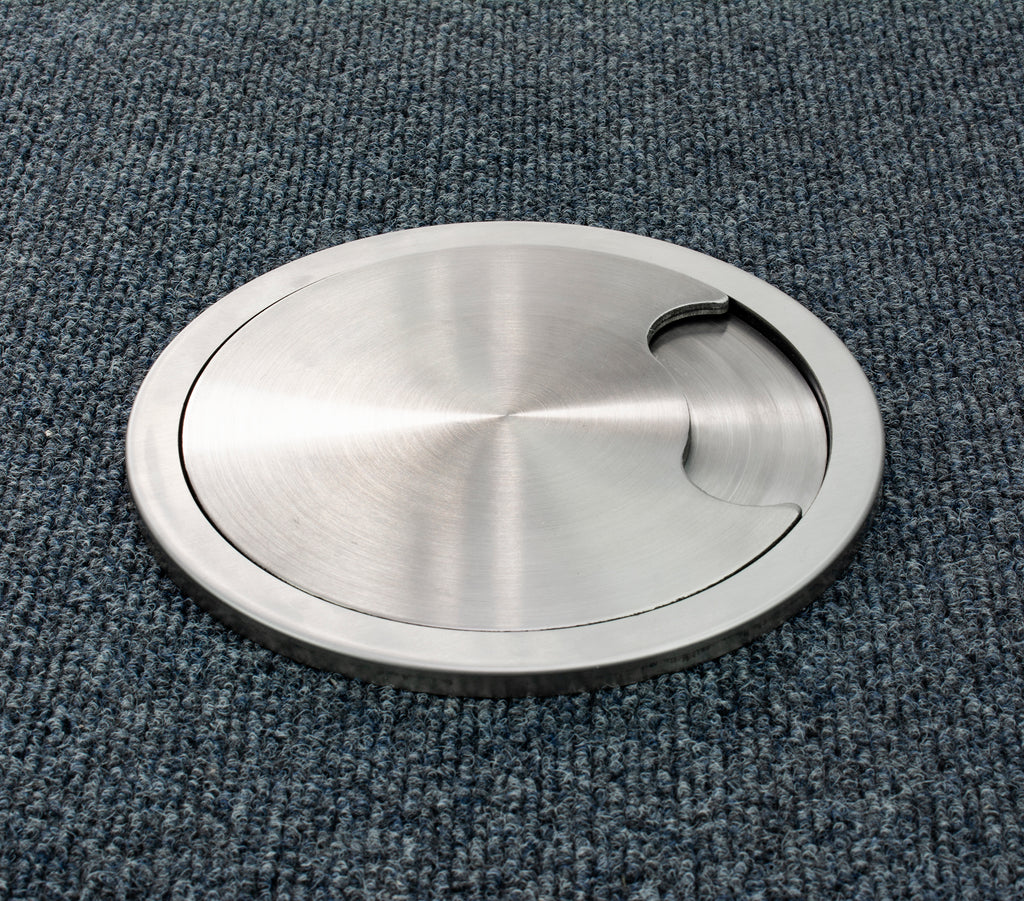

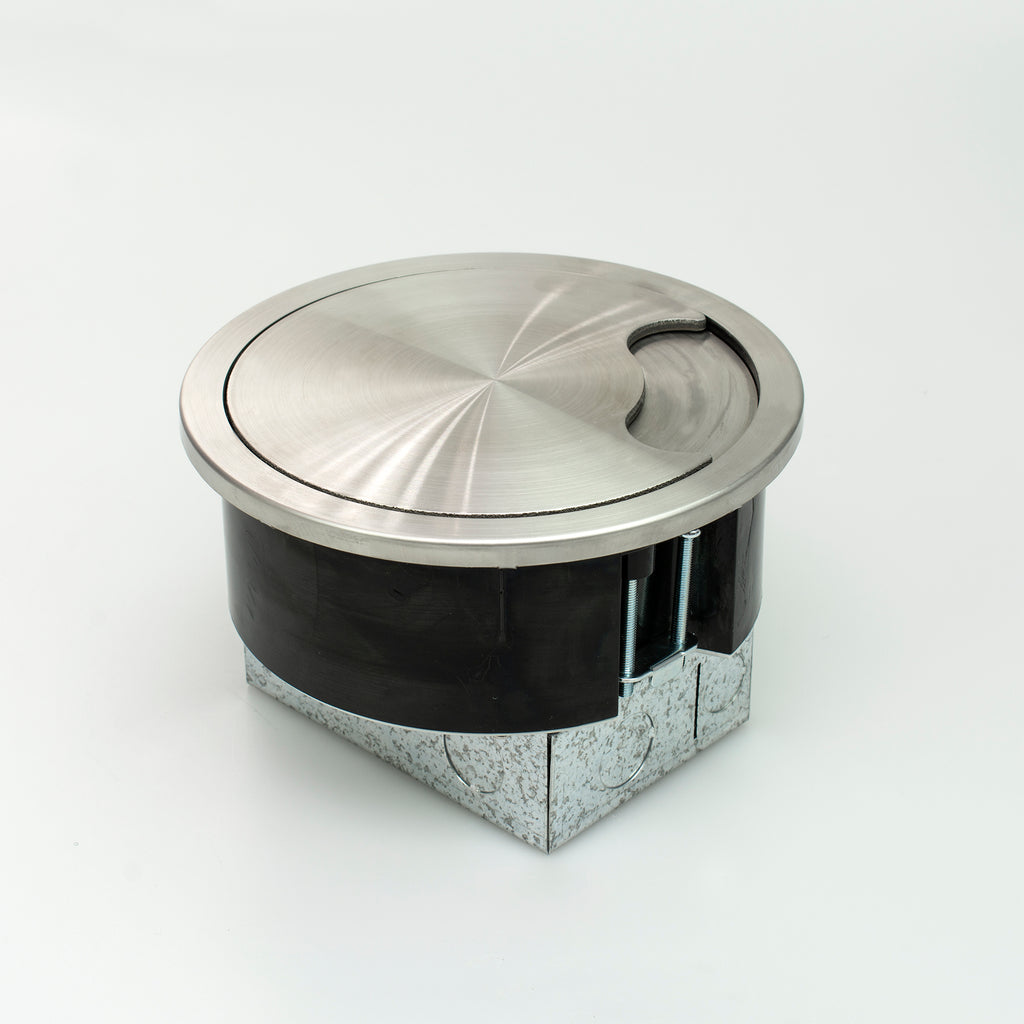

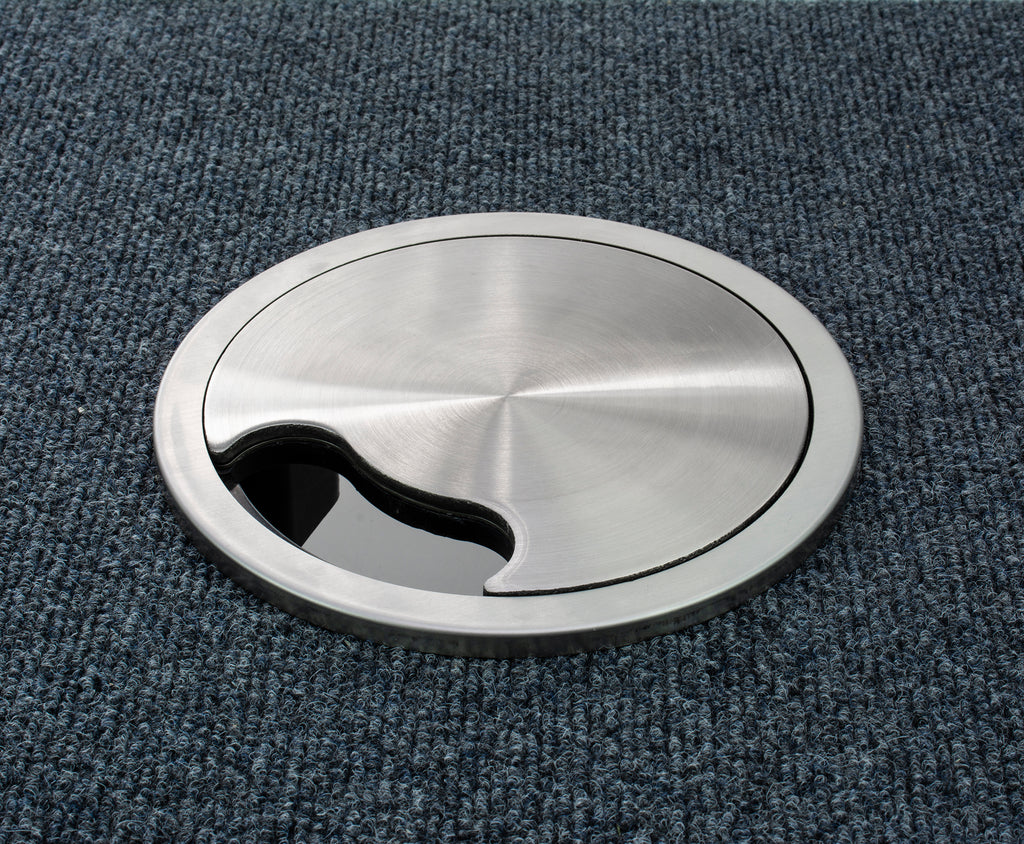

169mm Stainless Steel RCD Protected Power Grommet

Tass FloorboxSKU: FGS169RCD

£162.50(Ex. Vat)





  • Stainless steel Frame and lid section with lid retaining screws
  • Adjustable aperture opening
  • Secure Screw clamp installation
  • Galvanised steel backbox (97mm x 135mm)
  • 20mm and 25mm knockouts

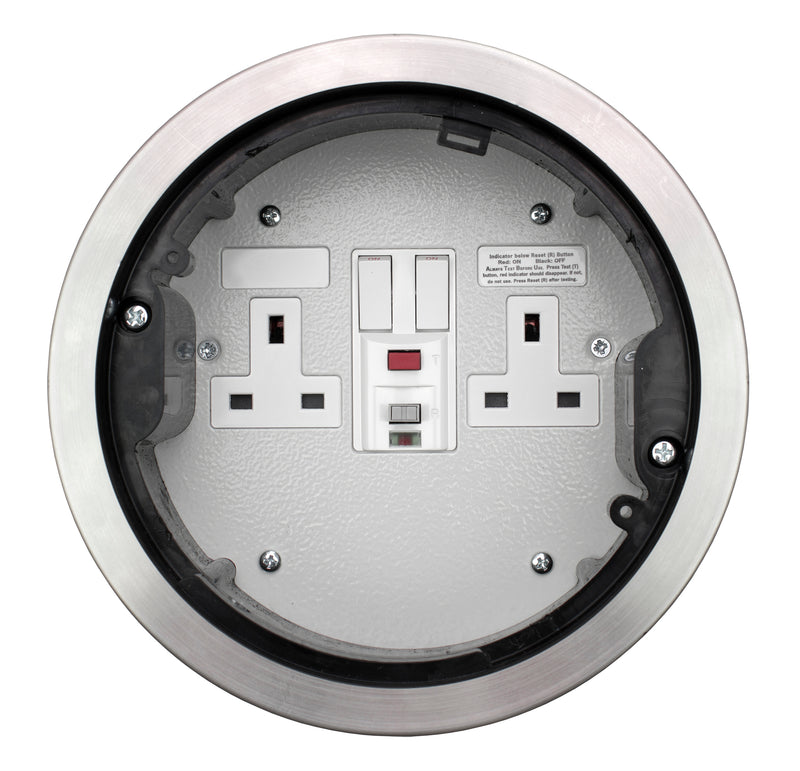

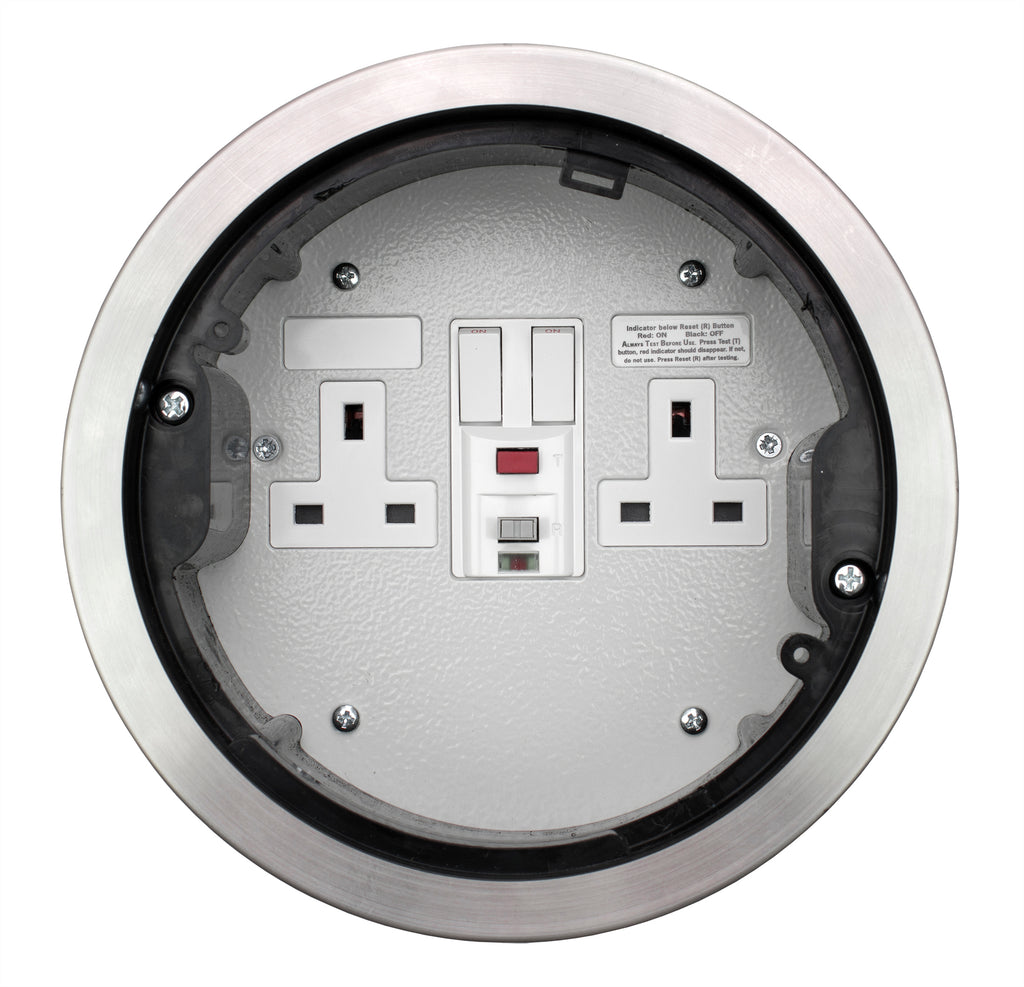

  • 13A Twin Switched RCD Protected UK Sockets
  • 20mm and 25mm knockouts
  • Max plug top width 48mm

Please note:

  • Not recommended in walkways or in areas which may cause a trip hazard
  • Standard Power Grommets are not suitable for screed and concrete floors
  • Model: FGS169RCD

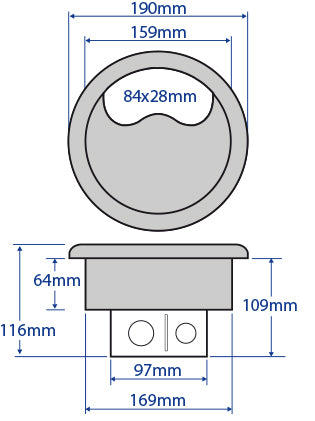

    Cutout Dia: 169mm
    Overall Dia: 190mm
    Power: 13A RCD Protected Twin Switched UK Socket
    Data: None
    Colours: Stainless Steel
    Flange Thickness: 9mm
    Flange Overhang: 11mm
    Cable Entry: 84mm x 28mm
    Min. Required Depth: 109mm

    Trade Pricing Policy

    For Electrical Wholesalers & Distributors only

    Prices shown are for Trade Customers of Tass Cable Management Limited and discounts may apply. To apply for a trade account please contact us via our web form click here,  alternatively you can buy many products sold by Tass Cable Management Ltd via our stockists, click here for a full list of vendors.
