152mm Standard Power Grommet with USB

Tass FloorboxSKU: FGG152P/USB
filler

Price:
£48.75(Ex. Vat)

Description

Description

Specifications

Downloads

  • Adjustable aperture opening
  • Secure Screw clamp installation
  • Manufactured from High Grade engineering plastics/ABS
  • Halogen Free flame retardant material UL94 VO with guaranteed low toxicity
  • New tapered edge flange for improved functionality
  • Cable opening dimensions: 76mm x 24mm

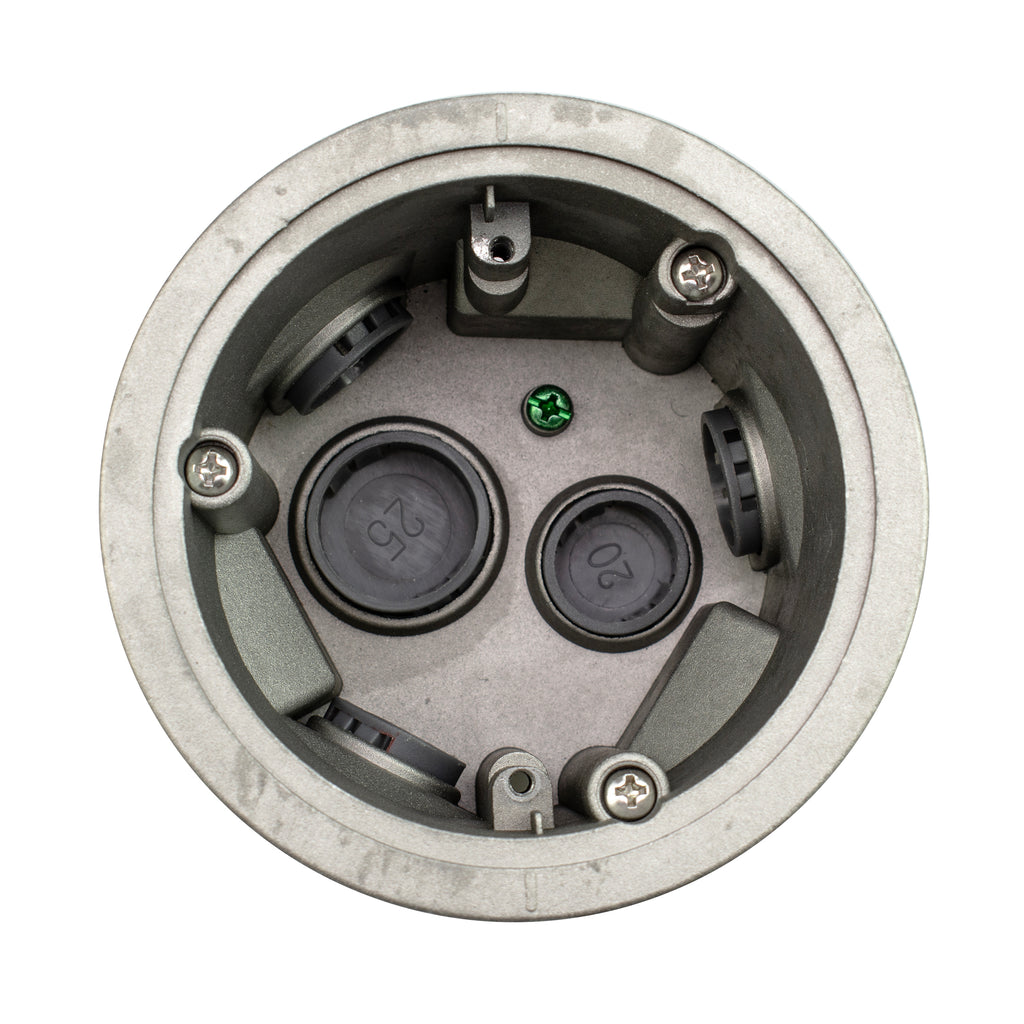

  • Galvanised steel back box
  • 20mm knockouts

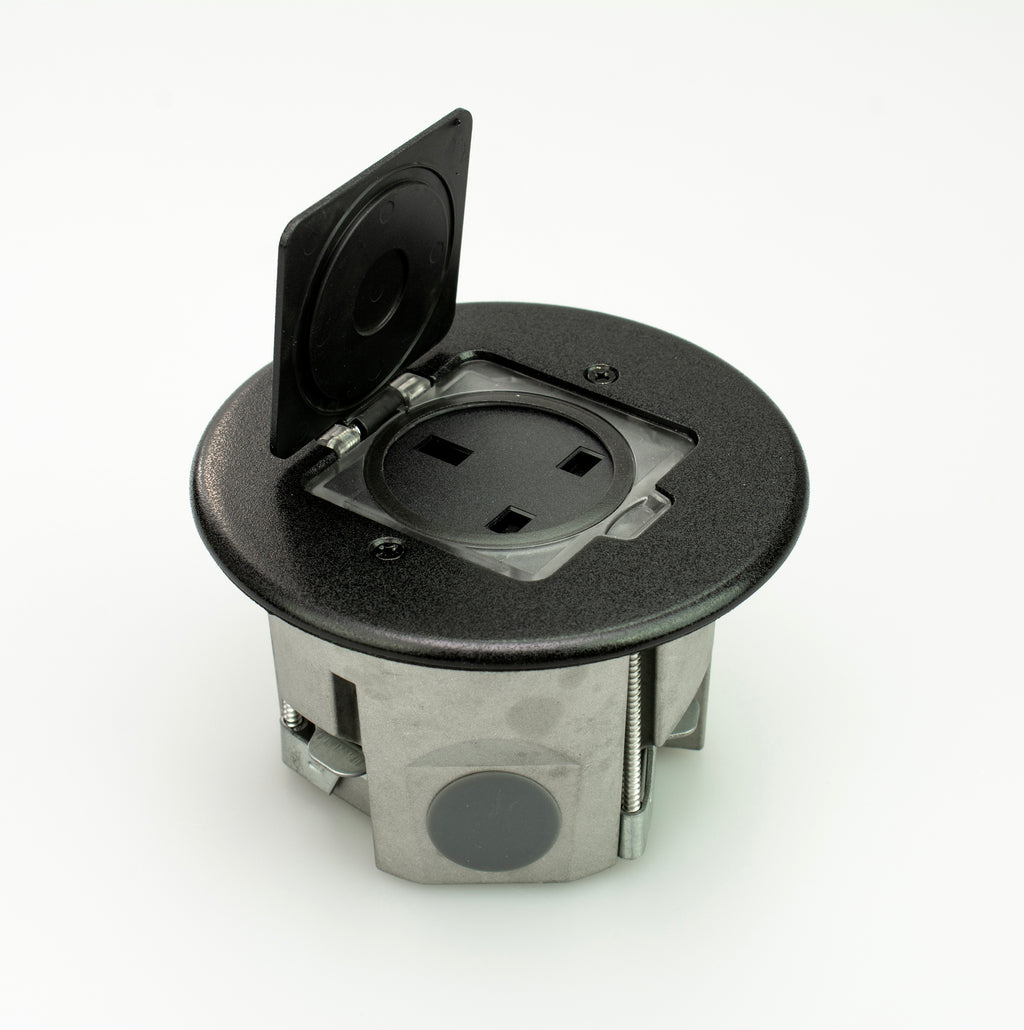

  • 13A UK Socket
  • USB charging port
  • Max plug top width 48mm

Please note:

  • Not recommended in walkways or in areas which may cause a trip hazard
  • Standard Power Grommets are not suitable for screed and concrete floors
  • Model: FGG152P/USB
    Cutout Dia: 152mm
    Overall Dia: 175mm
    Colours: Grey
    Flange Thickness: 5.46mm
    Cable Entry: 76mm x 24mm
    Min. Required Depth: 102mm
    1 Gang Switched Socket Fascia with USB: CMA771U
    Power: 1 x 13A UK Socket
    Voltage / Frequency: 250V / 50Hz
    Twin Earth: Yes
    Socket Ingress Protection: IP20
    Anti Microbial Certified: Yes
    USB: 1 Port (Type A)
    USB Voltage: 5V DC
    USB Charging Load: 2.1A
    Operating tempreture: -5 to +40 degrees
    Standards: BS1363 / BS EN 62680 / IEC 62368
