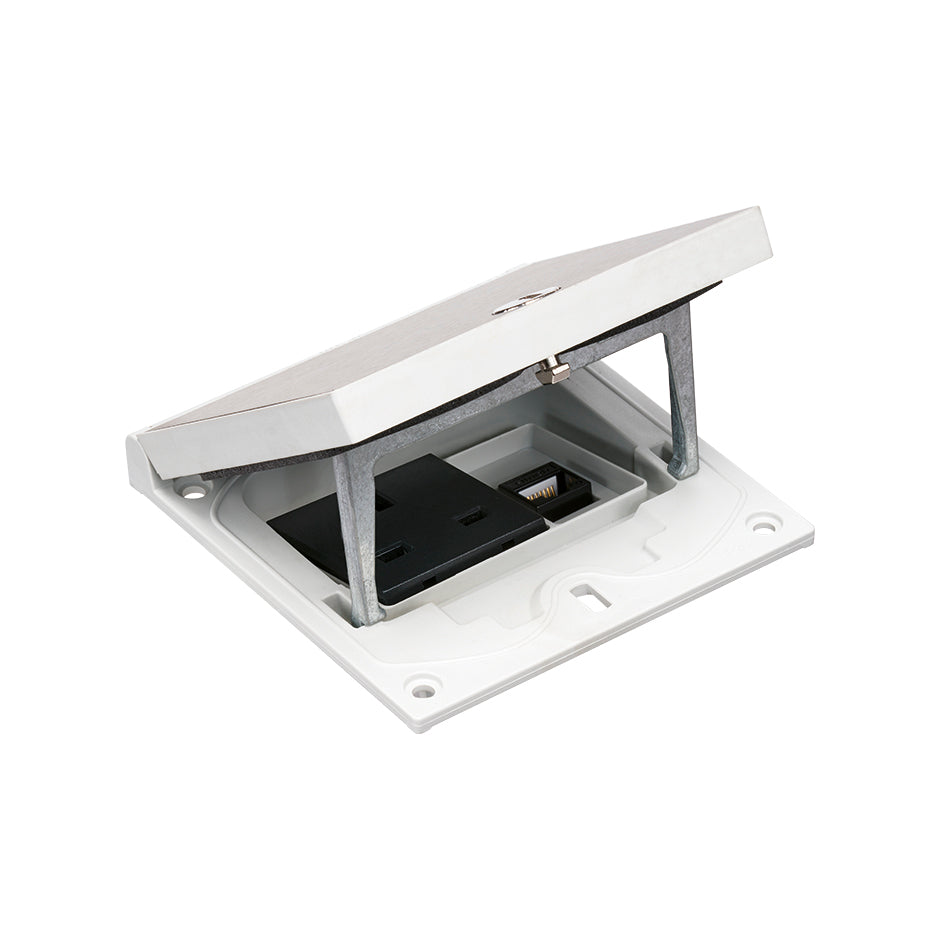

- A New watertight floorbox featuring an IP66 support mechanism designed for indoor and outdoor use
- Featuring a brushed stainless steel frame and lid section.
- Mechanism is available with either Manual or Safety Lock (6mm Allen key required for safety lock)
- Includes 13A UK power socket
- Includes 1 x Cat6 Data Port (RJ45 Connector)
- Ideal for indoor or outdoor areas which require occasional power connection
- Safety cover - hinge opens to less than 90 degrees so lid cannot be left open accidentally
- Unit offers IP66 Level protection from the elements

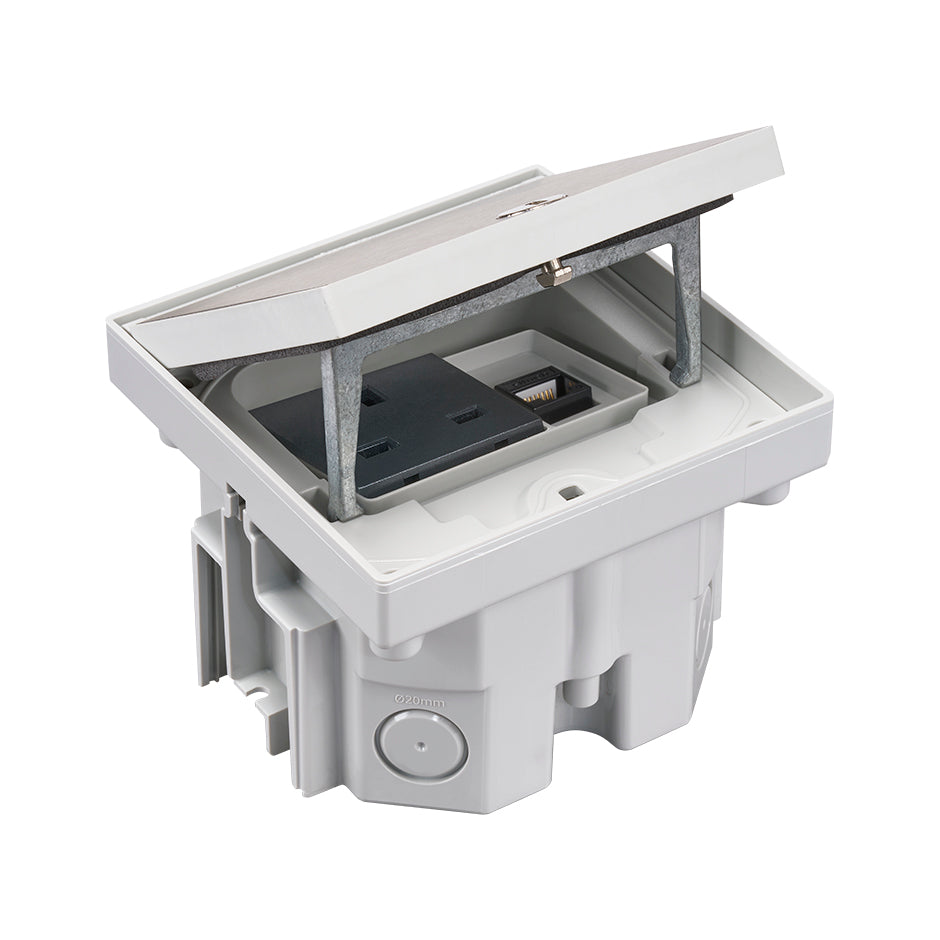

- To be used in conjuction with either Base sections KGT100RF/72 (raised floor) or KGT100/72 (screed floor).
- KGT100/72 screed floor trays can be grouped together using connection accessory model no: ACSE
- Supports max load when in closed position 1500kg, strong enough to withstand pedestrians while protecting cables from pressure and stress
- Tested to IK08 impact resistance
- Finished in Brushed Stainless Steel
- Includes protective film to protect box surface during installation
Note: To be used in conjuction with either Base sections KGT100RF/72 (raised floor) or KGT100/72 (screed floor).
| Model: | KFH146U/72 |
|---|---|
| Housing Material: | Polycarbonate |
| Power: | 1 x Socket (13A UK) / 250V~ |
| Data Space: | 1 x Cat6 Data Port (RJ45) |
| Lid Section Finish: | Brushed Stainless Steel |
| Max Loading (Closed / Open): | 1500kg / 250kg |
| IP Rating (Closed / Open): | IP66 / IP54 |
| Impact Protection Rating (Closed / Open): | IK08 / IK07 |
| Component Removal: | Only with Tool |
| Maintenance: | Use Soft Dry Cloth Only |
| Standards: | UKCA, BS1363, IEC60884, EN60670, EN50173, EN IEC 63000 |
Screed Tray Video Installation Guide
KFH Series Waterproof Floorbox
