KSE0SEC/23/72 - Support Mechanism with Safety Lock - Stainless Steel

Tass FloorboxSKU: KSE0SEC/23/72

£177.50(Ex. Vat)

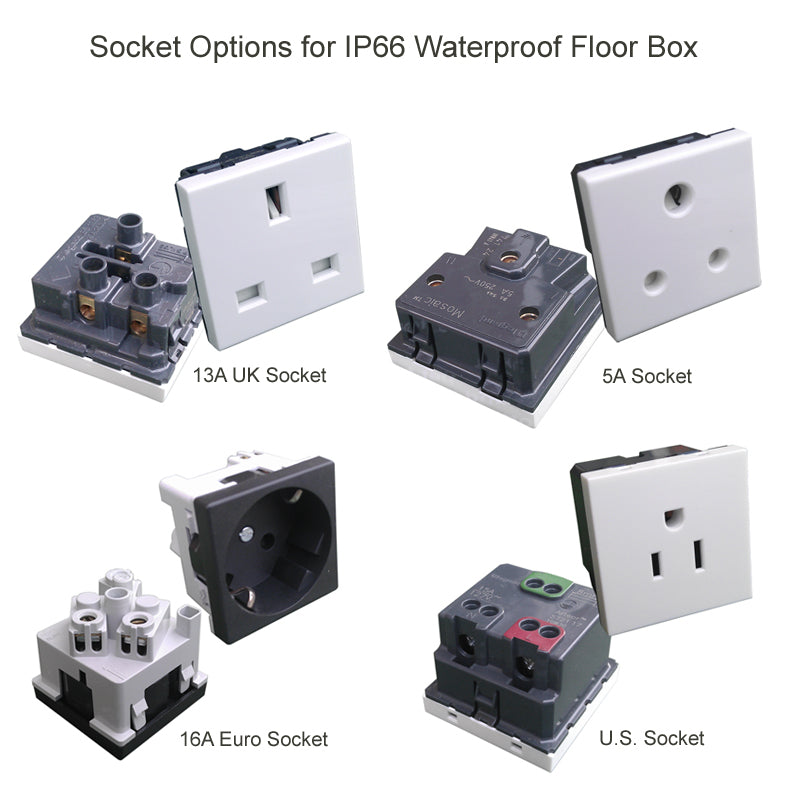

  • Stainless steel support unit including 13A UK power socket (other socket options available)
  • Ideal for open or outdoor areas which require occasional power connection
  • Safety Lock Mechanism (6m Allen key required)

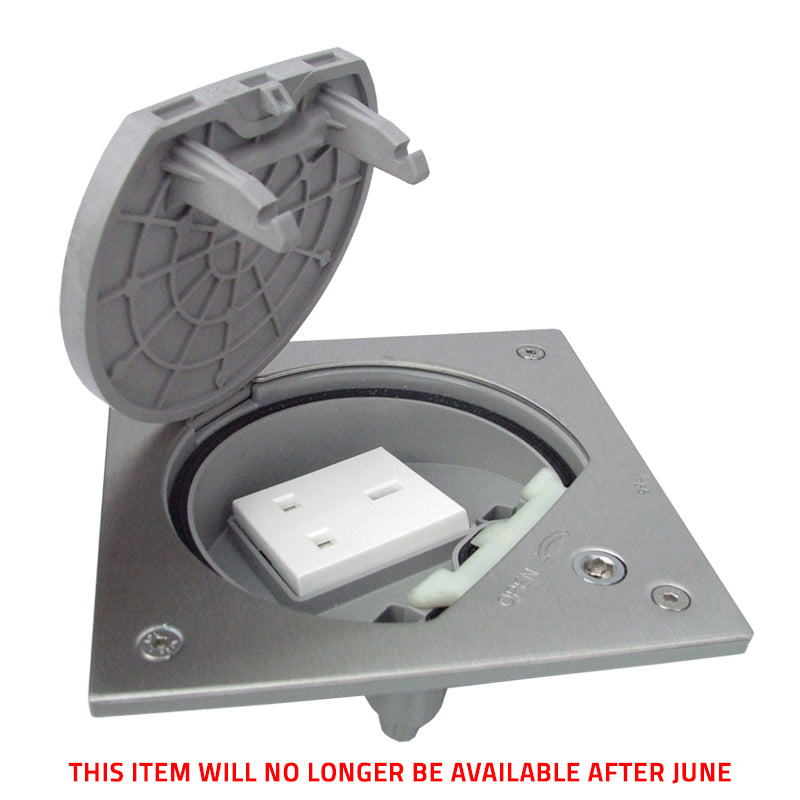

  • Safety cover - hinge opens to less than 90 degrees so lid cannot be left open accidentally

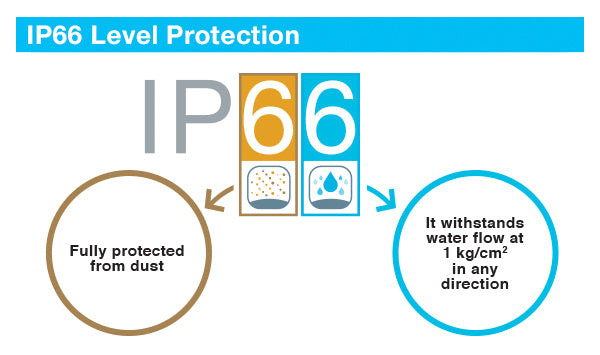

  • Unit offers IP66 Level protection from the elements
  • Tray includes a wooden cover that prevents any dirt getting inside the box during installation
  • Can be grouped together using connection accessory model no: ACSE
  • Max load when in closed position 1000kg
  • Max loading 170Kg when lid is open and connected, strong enough to withstand pedestrians while protecting cables from pressure and stress
  • Finished in Stainless Steel Grade 304
  • Includes protective film to protect box surface during installation

Note: To be used in conjuction with Base section KGE170TF/23 (raised floor) or KGE170/23 (screed floor).

Model: KSE0SEC/23/72
Dimensions: 130mm x 130mm
Power: 1 x Socket (13A UK)
Data: None
Colour: Stainless Steel
Max Loading (Closed): 1000kg
Max Loading (Open): 170kg
